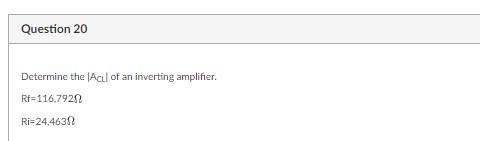

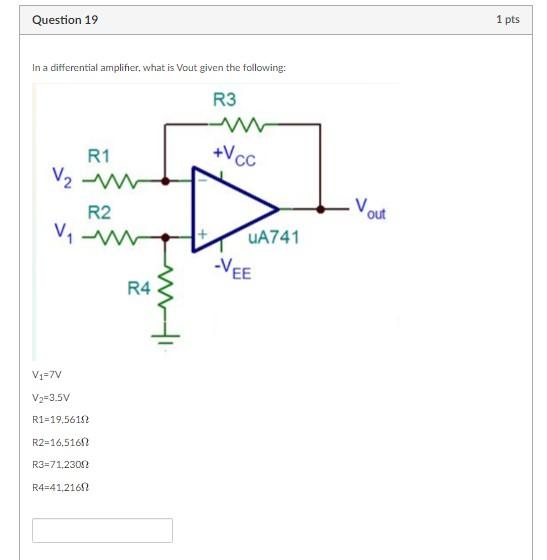

Question 19 In a differential amplifier, what is Vout given the following: R3 www +Vcc R1 V₂ - V₁ R2 www M V₁=7V V₂-3.5V R1-19,5610 R2-16,5160 R3=71,2300? R4=41,2160 R4 uA741 -VEE V out 1 pts Question 20 Determine the (Act of an inverting amplifier. Rf=116,7920 Ri=24,4630
