Learning Goal: To calculate the component values for high-Q bandpass and bandreject filters to meet frequency domain spe

[answerhappygod]

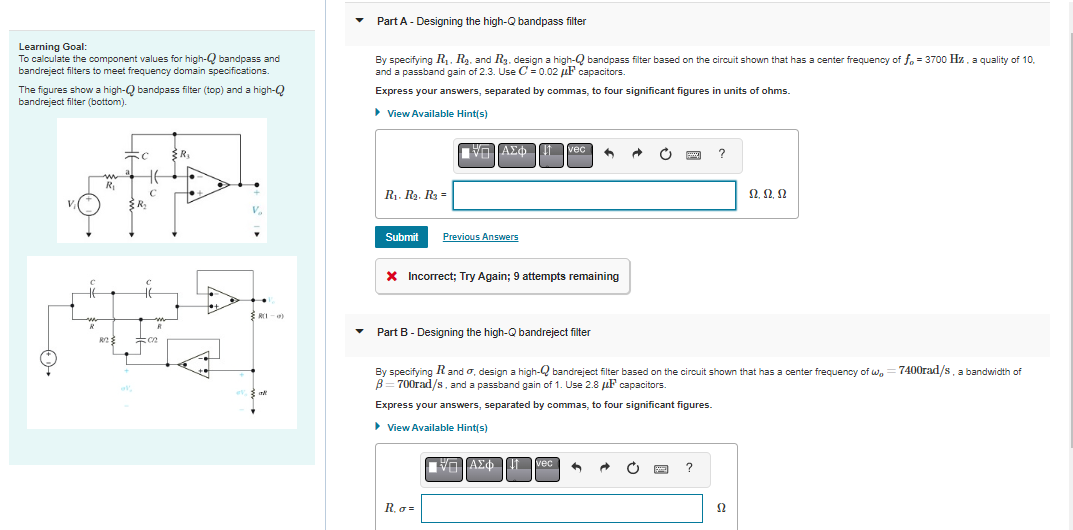

Learning Goal To Calculate The Component Values For High Q Bandpass And Bandreject Filters To Meet Frequency Domain Spe 1 (69.72 KiB) Viewed 35 times

Learning Goal: To calculate the component values for high-Q bandpass and bandreject filters to meet frequency domain specifications. The figures show a high-Q bandpass filter (top) and a high-Q bandreject filter (bottom). R₁ FO HE R₂ ER R(1-0) Part A - Designing the high-Q bandpass filter By specifying R₁, R₂, and R₂. design a high-Q bandpass filter based on the circuit shown that has a center frequency of fo = 3700 Hz, a quality of 10. and a passband gain of 2.3. Use C = 0.02 μF capacitors. Express your answers, separated by commas, to four significant figures in units of ohms. ▸ View Available Hint(s) ΠΑΠΑΣΦ R₁. R₂. R₂ = Submit Previous Answers vec * Incorrect; Try Again; 9 attempts remaining Part B - Designing the high-Q bandreject filter R.σ= ^ ΠΙΑΣΦ → C ? By specifying Rand , design a high-Q bandreject filter based on the circuit shown that has a center frequency of w, = 7400rad/s, a bandwidth of B 700rad/s, and a passband gain of 1. Use 2.8 μF capacitors. Express your answers, separated by commas, to four significant figures. ▸ View Available Hint(s) Ω, Ω, Ω 22
