Consider Table 1. During the calibration of a particular instrument M (at an ambient temperature of 23∘C) the output mea

Post by answerhappygod »

Consider Table 1 During The Calibration Of A Particular Instrument M At An Ambient Temperature Of 23 C The Output Mea 1
Consider Table 1 During The Calibration Of A Particular Instrument M At An Ambient Temperature Of 23 C The Output Mea 1 (399.49 KiB) Viewed 22 times
Calibration temp = 23Operating temp = 45fsd = 10mV
what is the max non linearity (in terms of fsd) under calibration conditions?

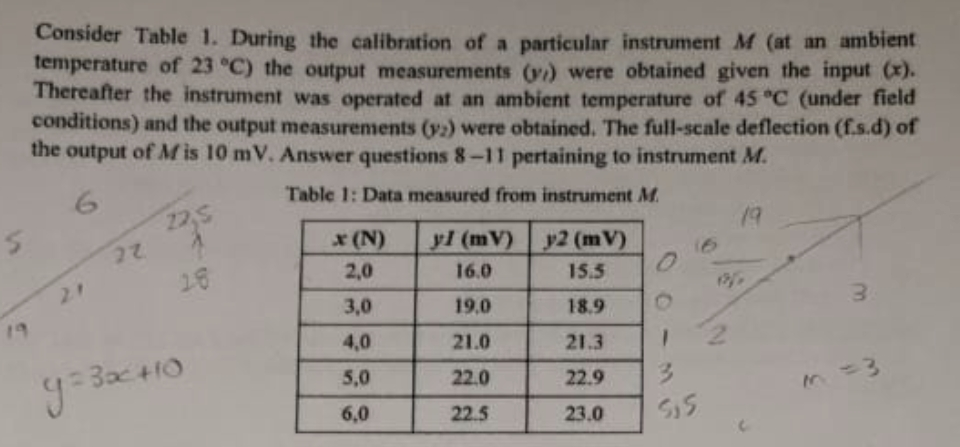

Consider Table 1. During the calibration of a particular instrument M (at an ambient temperature of 23∘C) the output measurements (yi​) were obtained given the input (x). Thereafter the instrument was operated at an ambient temperature of 45∘C (under field conditions) and the output measurements (y2​) were obtained. The full-scale deflection (f.s.d) of the output of M is 10mV. Answer questions 8−11 pertaining to instrument M. Table 1: Data measured from instrument M.
