2. A balanced three-phase inductive load is supplied in steady state by a balanced three-phase voltage source with a pha

Post by answerhappygod »

2 A Balanced Three Phase Inductive Load Is Supplied In Steady State By A Balanced Three Phase Voltage Source With A Pha 1
2 A Balanced Three Phase Inductive Load Is Supplied In Steady State By A Balanced Three Phase Voltage Source With A Pha 1 (110.1 KiB) Viewed 37 times

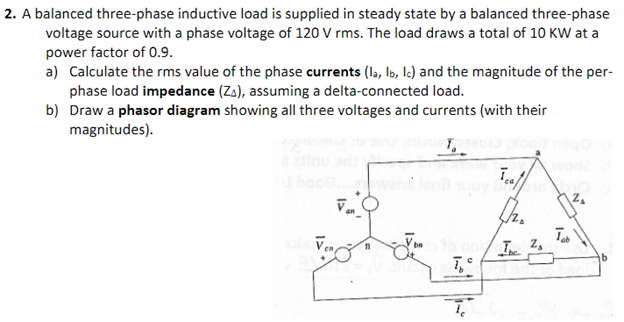

2. A balanced three-phase inductive load is supplied in steady state by a balanced three-phase voltage source with a phase voltage of 120 Vrms. The load draws a total of 10KW at a power factor of 0.9. a) Calculate the rms value of the phase currents (la​,lb​,lc​) and the magnitude of the perphase load impedance (ZΔ​), assuming a delta-connected load. b) Draw a phasor diagram showing all three voltages and currents (with their magnitudes).
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
