For the Silicon transistors of the circuit of figure 3, ß = 110 and the Early Voltage is equal to infinity a) Determine

Post by answerhappygod »

For The Silicon Transistors Of The Circuit Of Figure 3 Ss 110 And The Early Voltage Is Equal To Infinity A Determine 1
For The Silicon Transistors Of The Circuit Of Figure 3 Ss 110 And The Early Voltage Is Equal To Infinity A Determine 1 (68.49 KiB) Viewed 30 times

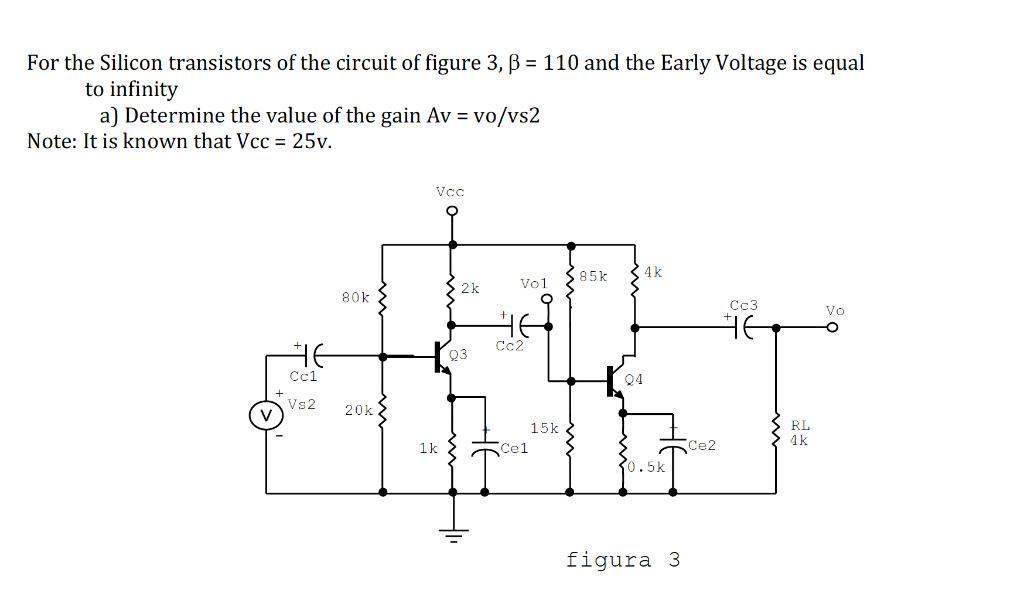

For the Silicon transistors of the circuit of figure 3, ß = 110 and the Early Voltage is equal to infinity a) Determine the value of the gain Av = vo/vs2 Note: It is known that Vcc= 25v. не Сc1 Vs2 80k 20k Vcc 1k 2k Q3 Vol # Cc2 Cel 15k 85k 04 4k 0.5k figura 3 Ce2 Cc3 HE RL 4k Vo
