Q2 The circuit in Figure Q2 is an active filter. (a) (b) Vio- Derive the expression for the voltage transfer function; V

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q2 The circuit in Figure Q2 is an active filter. (a) (b) Vio- Derive the expression for the voltage transfer function; V

Post by answerhappygod »

Q2 The Circuit In Figure Q2 Is An Active Filter A B Vio Derive The Expression For The Voltage Transfer Function V 1
Q2 The Circuit In Figure Q2 Is An Active Filter A B Vio Derive The Expression For The Voltage Transfer Function V 1 (80.42 KiB) Viewed 35 times
electronicc circuit analays design
please answer

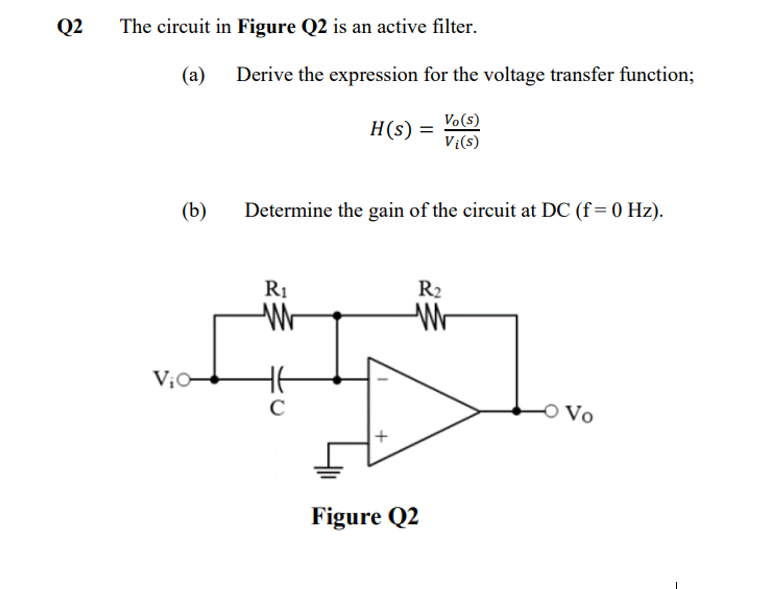

Q2 The circuit in Figure Q2 is an active filter. (a) (b) Vio- Derive the expression for the voltage transfer function; Vo(s) Vi(s) Determine the gain of the circuit at DC (f = 0 Hz). R₁ W H(s) = C + R₂ W Figure Q2 O Vo
