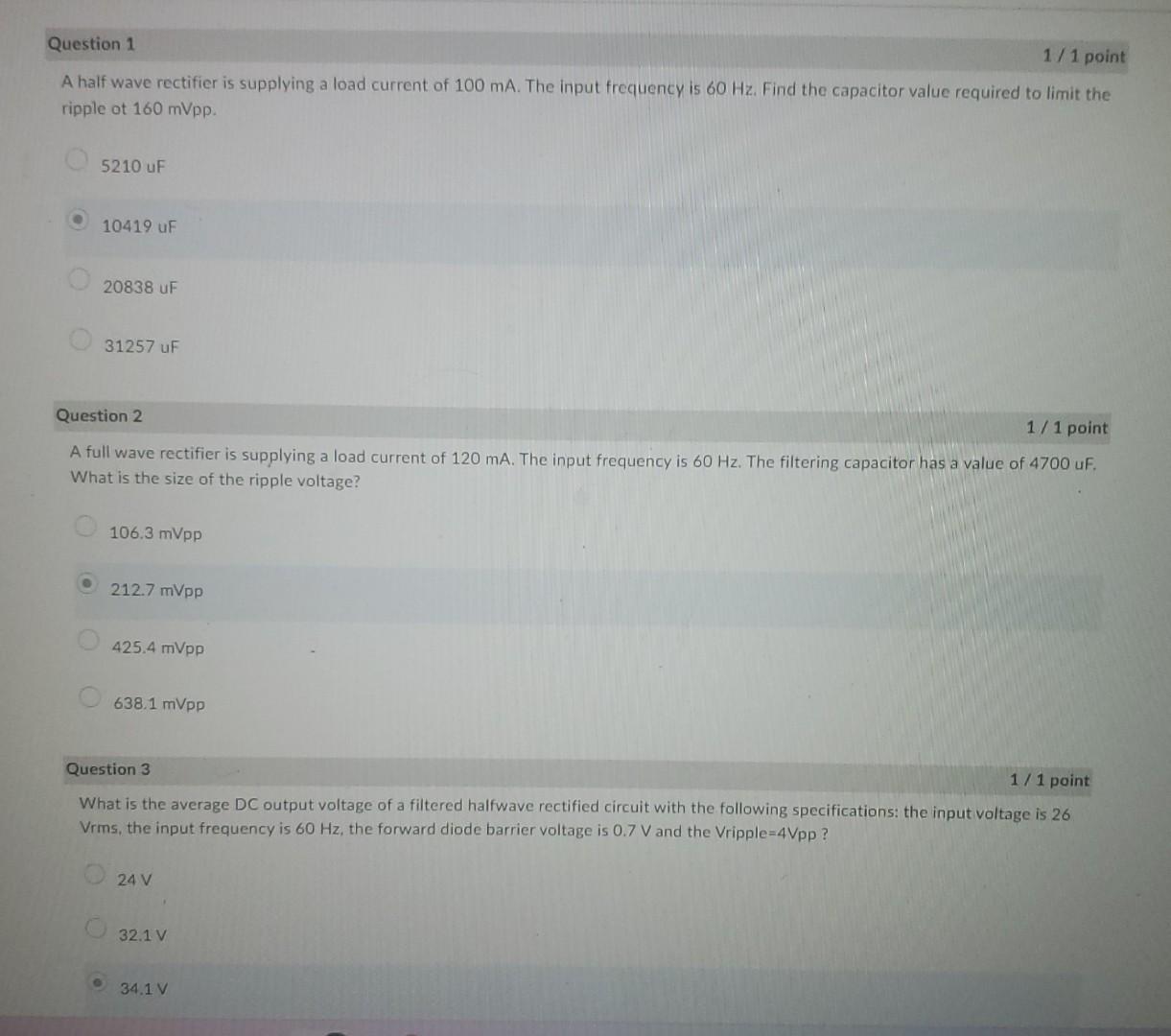

I Need Solutions Of This Question Please 1 (82.92 KiB) Viewed 24 times

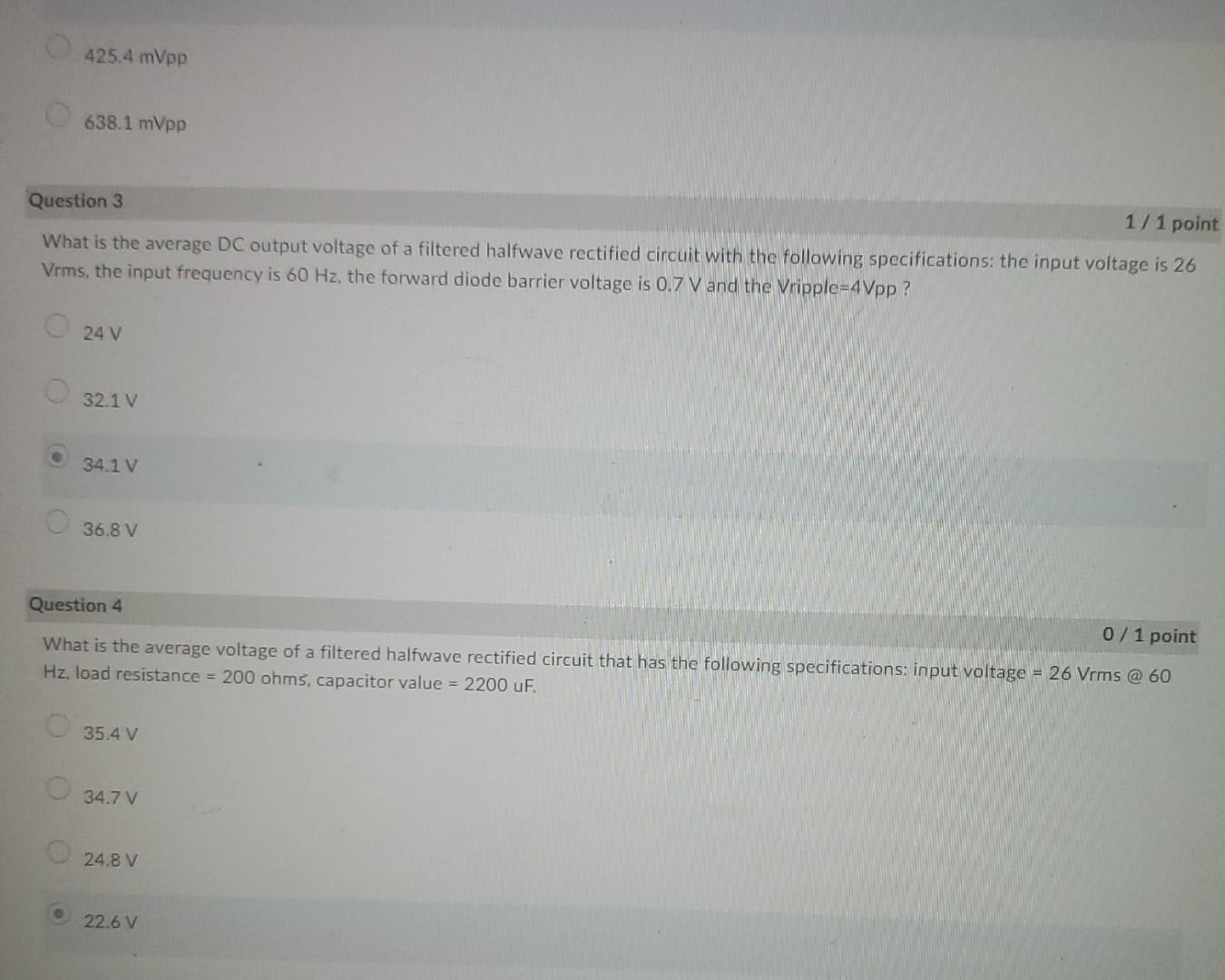

I Need Solutions Of This Question Please 2 (109.49 KiB) Viewed 24 times
Question 1 1/1 point A half wave rectifier is supplying a load current of 100 mA. The input frequency is 60 Hz. Find the capacitor value required to limit the ripple ot 160 mVpp. 5210 uF 10419 uF 20838 uF 31257 uF Question 2 1/1 point A full wave rectifier is supplying a load current of 120 mA. The input frequency is 60 Hz. The filtering capacitor has a value of 4700 uF. What is the size of the ripple voltage? 106.3 mVpp 212.7 mVpp 425.4 mVpp 638.1 mVpp Question 3 1/1 point What is the average DC output voltage of a filtered halfwave rectified circuit with the following specifications: the input voltage is 26 Vrms, the input frequency is 60 Hz, the forward diode barrier voltage is 0.7 V and the Vripple=4Vpp ? 24 V 32.1 V 34.1 V
425.4 mVpp 638.1 mVpp Question 3 1/1 point What is the average DC output voltage of a filtered halfwave rectified circuit with the following specifications: the input voltage is 26 Vrms, the input frequency is 60 Hz, the forward diode barrier voltage is 0.7 V and the Vripple-4Vpp ? 24 V 32.1 V 34.1 V 36.8 V Question 4 0/1 point What is the average voltage of a filtered halfwave rectified circuit that has the following specifications: input voltage = 26 Vrms @ 60 Hz, load resistance = 200 ohms, capacitor value = 2200 uF. 35.4 V 34.7 V 24.8 V 22.6 V
