- Q2 The Circuit In Figure Q2 Is An Active Filter A Derive The Expression For The Voltage Transfer Function H S Vi S 1 (26.12 KiB) Viewed 43 times
Q2 The circuit in Figure Q2 is an active filter. (a) Derive the expression for the voltage transfer function; H(s)=Vi(s
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Q2 The circuit in Figure Q2 is an active filter. (a) Derive the expression for the voltage transfer function; H(s)=Vi(s

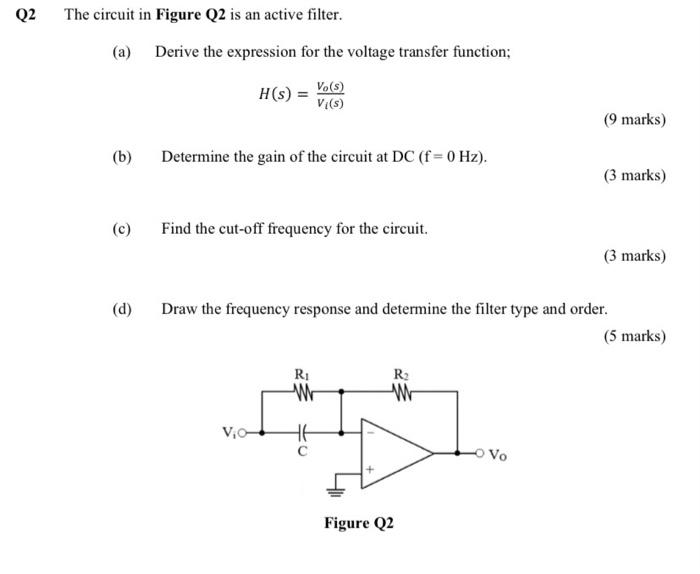

Q2 The circuit in Figure Q2 is an active filter. (a) Derive the expression for the voltage transfer function; H(s)=Vi(s)Vo(s) (9mar (b) Determine the gain of the circuit at DC(f=0 Hz). (3mar (c) Find the cut-off frequency for the circuit. (3 mar (d) Draw the frequency response and determine the filter type and order. (5 mar Figure Q2
