(a) In a rectangular waveguide, the H field in the z direction for the transverse electric field component is given by H

[answerhappygod]

A In A Rectangular Waveguide The H Field In The Z Direction For The Transverse Electric Field Component Is Given By H 1 (64.45 KiB) Viewed 37 times

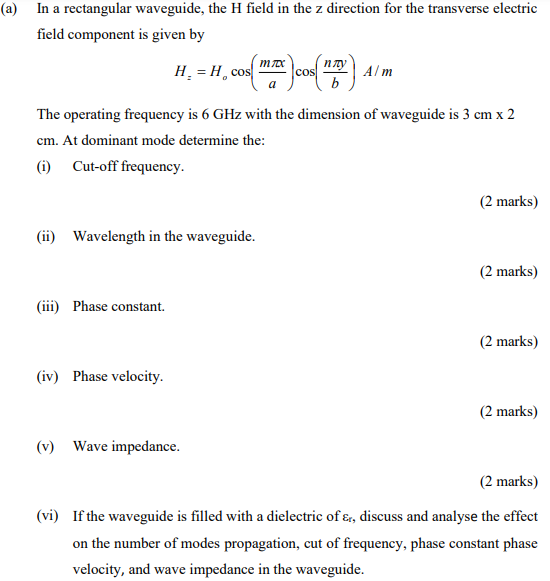

(a) In a rectangular waveguide, the H field in the z direction for the transverse electric field component is given by H₂ = H₂ COS (ii) Wavelength in the waveguide. (iii) Phase constant. (iv) Phase velocity. mлXx The operating frequency is 6 GHz with the dimension of waveguide is 3 cm x 2 cm. At dominant mode determine the: (i) Cut-off frequency. (v) Wave impedance. (nb) cos A/m (2 marks) (2 marks) (2 marks) (2 marks) (2 marks) (vi) If the waveguide is filled with a dielectric of &, discuss and analyse the effect on the number of modes propagation, cut of frequency, phase constant phase velocity, and wave impedance in the waveguide.
