(b) Based on input signal, V¡ in Figure Q1(b), analyze, draw and label completely the output waveforms at Voi, Voz and V

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

(b) Based on input signal, V¡ in Figure Q1(b), analyze, draw and label completely the output waveforms at Voi, Voz and V

Post by answerhappygod »

B Based On Input Signal V In Figure Q1 B Analyze Draw And Label Completely The Output Waveforms At Voi Voz And V 1
B Based On Input Signal V In Figure Q1 B Analyze Draw And Label Completely The Output Waveforms At Voi Voz And V 1 (98.76 KiB) Viewed 27 times

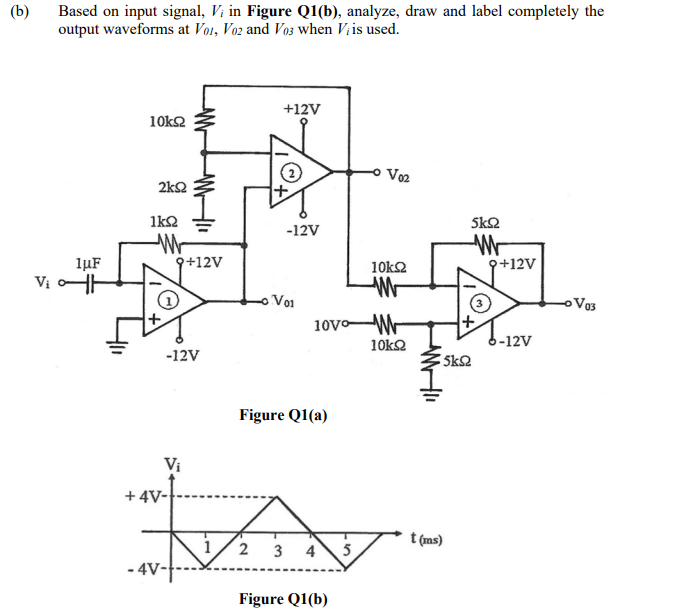

(b) Based on input signal, V¡ in Figure Q1(b), analyze, draw and label completely the output waveforms at Voi, Voz and V03 when Viis used. 1µF Vi H 10ks2 2kQ2 1kQ2 W 9+12V -12V Vi +12V 2 + -12V V01 V02 Figure Q1(a) 10kΩ W 10vo W 10kQ2 Ay 2 3 4 5 Figure Q1(b) 5kQ2 W 5kQ2 t (ms) 9+12V 6-12V V03
