- Vi Name The Function Of Each Op Omp In Figure Q1 A Based On Input Signal V In Figure Q1 B Analyze Draw And Label 1 (37.17 KiB) Viewed 21 times
Vi Name the function of each op-omp in Figure Q1(a). Based on input signal, V, in Figure Q1(b), analyze, draw and label
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Vi Name the function of each op-omp in Figure Q1(a). Based on input signal, V, in Figure Q1(b), analyze, draw and label

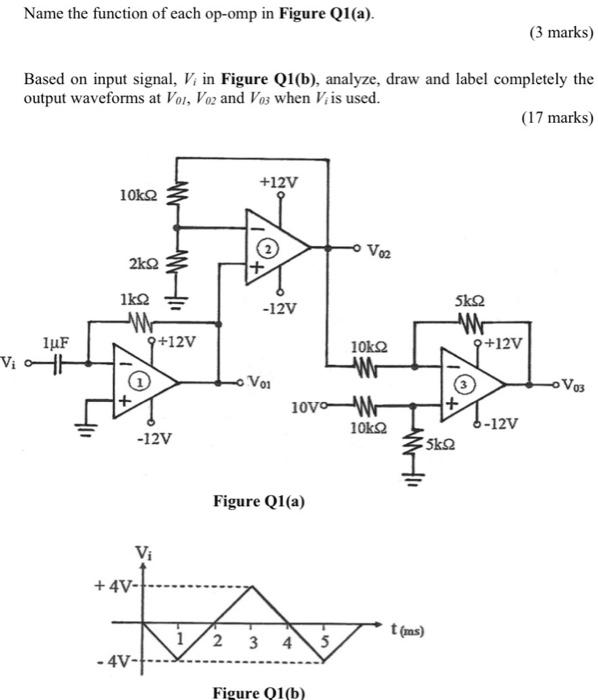

Vi Name the function of each op-omp in Figure Q1(a). Based on input signal, V, in Figure Q1(b), analyze, draw and label completely the output waveforms at Vor, Voz and V03 when V, is used. (17 marks) 1μF H 10kQ2 2kQ2 1kQ2 W +4V 9+12V -12V Vi N +12V 1 2 -12V Voi 10Vº Figure Q1(a) 3 4 5 Figure Q1(b) V02 10ks2 W 10ΚΩ WWW-1 5k92 W 9+12V 5ks2 t (ms) (3 marks) 6-12V V03
