Q2 The circuit in Figure Q2 is an active filter. (a) (b) (c) (d) Derive the expression for the voltage transfer function

Post by answerhappygod »

Q2 The Circuit In Figure Q2 Is An Active Filter A B C D Derive The Expression For The Voltage Transfer Function 1
Q2 The Circuit In Figure Q2 Is An Active Filter A B C D Derive The Expression For The Voltage Transfer Function 1 (35.95 KiB) Viewed 36 times

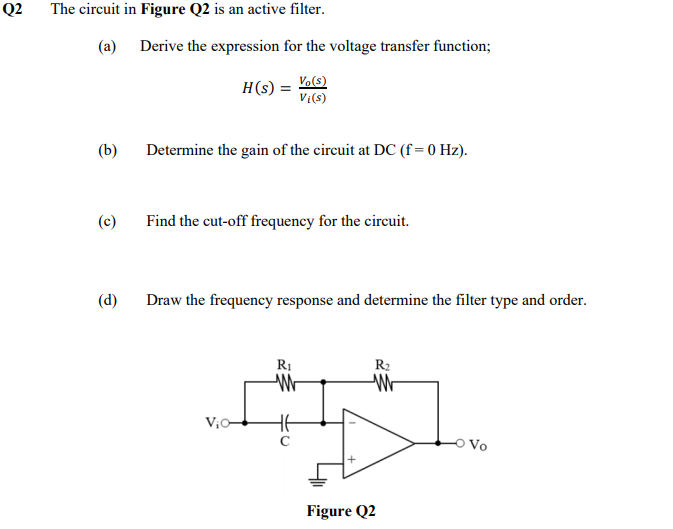

Q2 The circuit in Figure Q2 is an active filter. (a) (b) (c) (d) Derive the expression for the voltage transfer function; Vo(s) Vi(s) H(s) = Determine the gain of the circuit at DC (f = 0 Hz). Find the cut-off frequency for the circuit. Draw the frequency response and determine the filter type and order. V₁0- R₁ W R₂ W Figure Q2 Vo
