- The Single Phase Exact Cevivalent Circuit Of A Practical Transformer Has Tu Sollowing Cevivalent Circuit Parameters 1 (97.44 KiB) Viewed 32 times

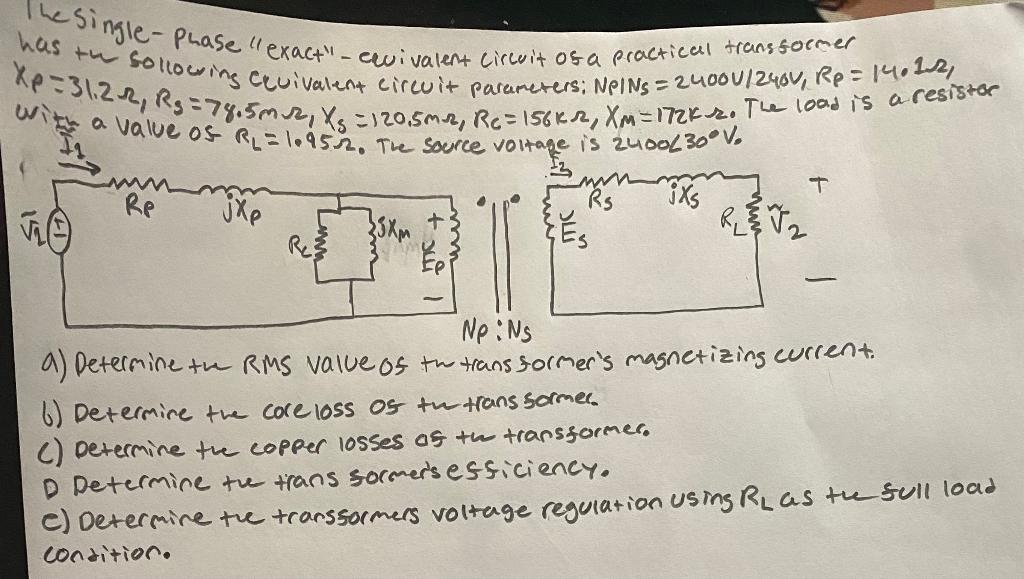

The single-Phase "exact" - cevivalent circuit of a practical transformer has tu sollowing Cevivalent circuit parameters: NPINS = 24000/240V, Rp = 14.12, XP-31.22, Rg=78.5m√z, Xs = 120,5mm2, R₁ = 156 KR, XM = 172k-2. The load is a resistor Wit a value os R₁ = 1.95/2. The Source voltage is 2400/30°V. ixs MA Re jXp Re OT FP mn Rs T - Np: Ns a) Determine the RMS value of the transformer's magnetizing current. 6) Determine the core loss of tu trans sormer () Determine the copper losses of the transformer. D Determine the trans sormer's efficiency. e) Determine the transformers voltage regulation using RL as the full load condition.
