Learning Goal: To calculate the component values for high-Q bandpass and bandreject filters to meet frequency domain spe

[answerhappygod]

Learning Goal To Calculate The Component Values For High Q Bandpass And Bandreject Filters To Meet Frequency Domain Spe 1 (99.93 KiB) Viewed 32 times

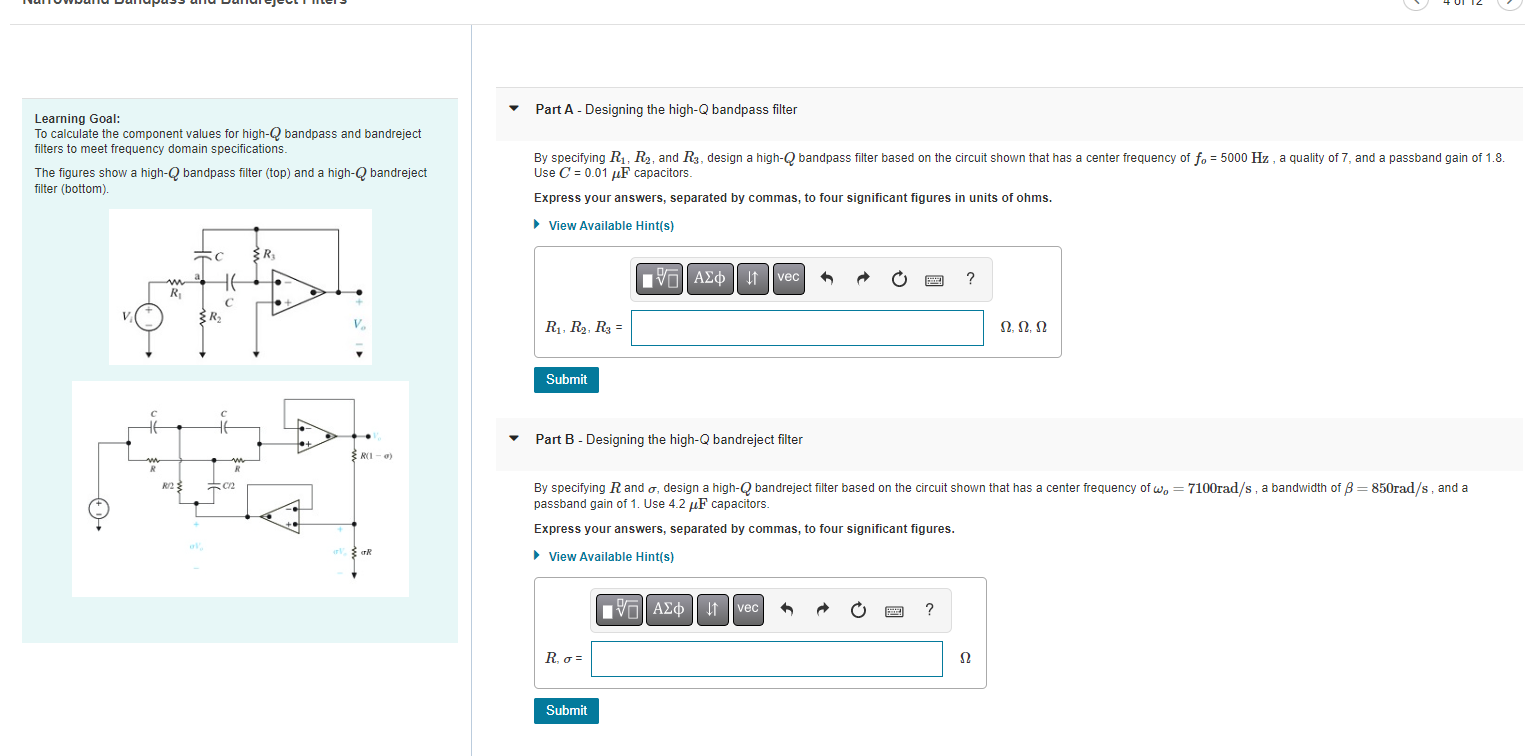

Learning Goal: To calculate the component values for high-Q bandpass and bandreject filters to meet frequency domain specifications. The figures show a high-Q bandpass filter (top) and a high-Q bandreject filter (bottom). R₁ R₂ C {R₁ V >R(1-0) Part A - Designing the high-Q bandpass filter By specifying R₁, R₂, and R3, design a high-Q bandpass filter based on the circuit shown that has a center frequency of fo = 5000 Hz, a quality of 7, and a passband gain of 1.8. Use C = 0.01 μF capacitors. Express your answers, separated by commas, to four significant figures in units of ohms. ► View Available Hint(s) R₁, R₂, R₂ = Submit VG ΑΣΦ Part B - Designing the high-Q bandreject filter R, σ= ↓↑ vec Submit ↑ By specifying R and o, design a high-Q bandreject filter based on the circuit shown that has a center frequency of wo = 7100rad/s, a bandwidth of 3 = 850rad/s, and a passband gain of 1. Use 4.2 μF capacitors. Express your answers, separated by commas, to four significant figures. ► View Available Hint(s) AΣo↓ vec ? ? Ω, Ω, Ω Ω
