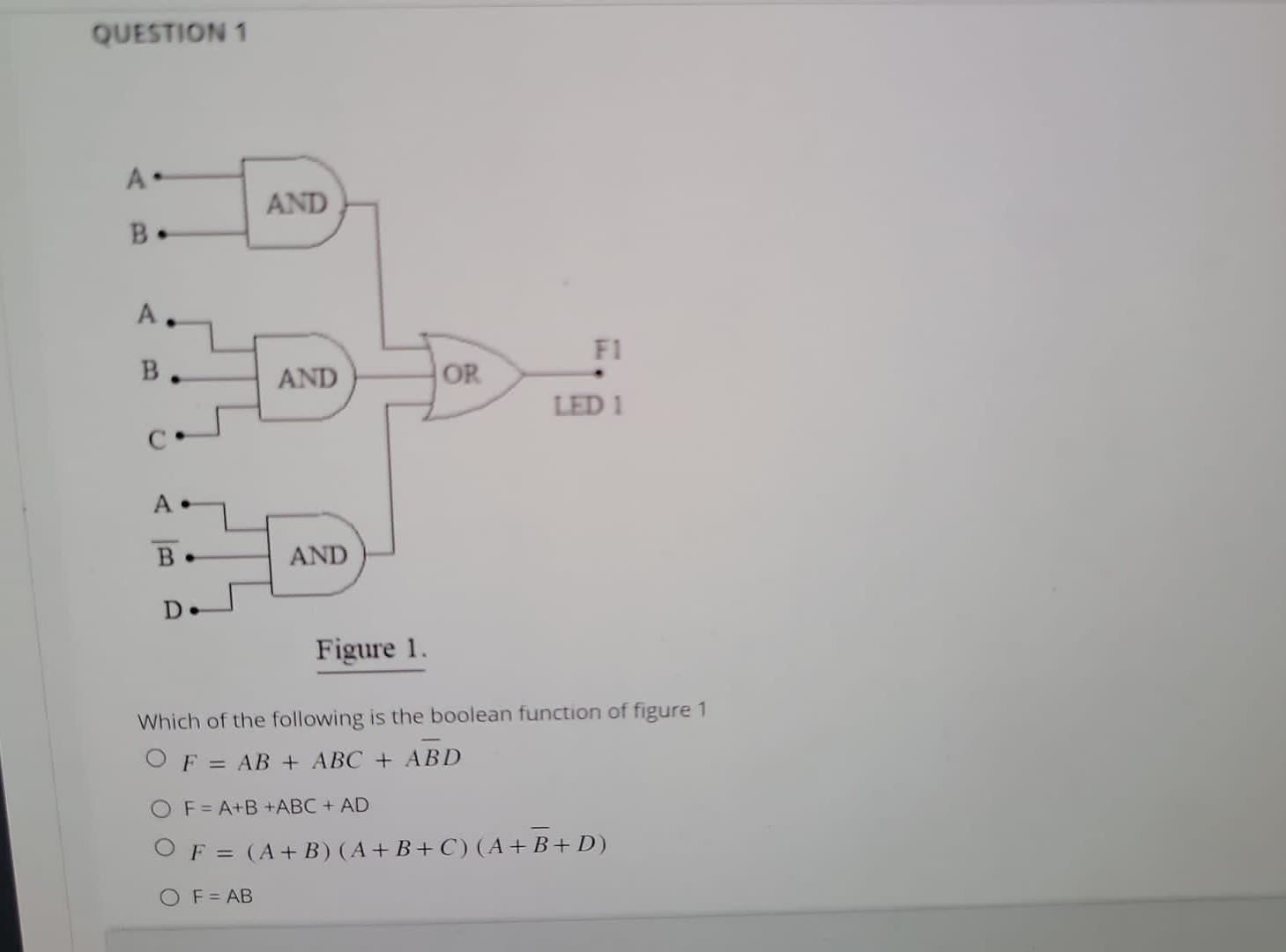

QUESTION 1 A. B. A. B. B D. AND AND AND Figure 1. OR F1 LED 1 Which of the following is the boolean function of figure 1 OF = AB + ABC + ABD OF=A+B +ABC + AD OF = (A + B) (A+B+C) (A+B+D) OF = AB

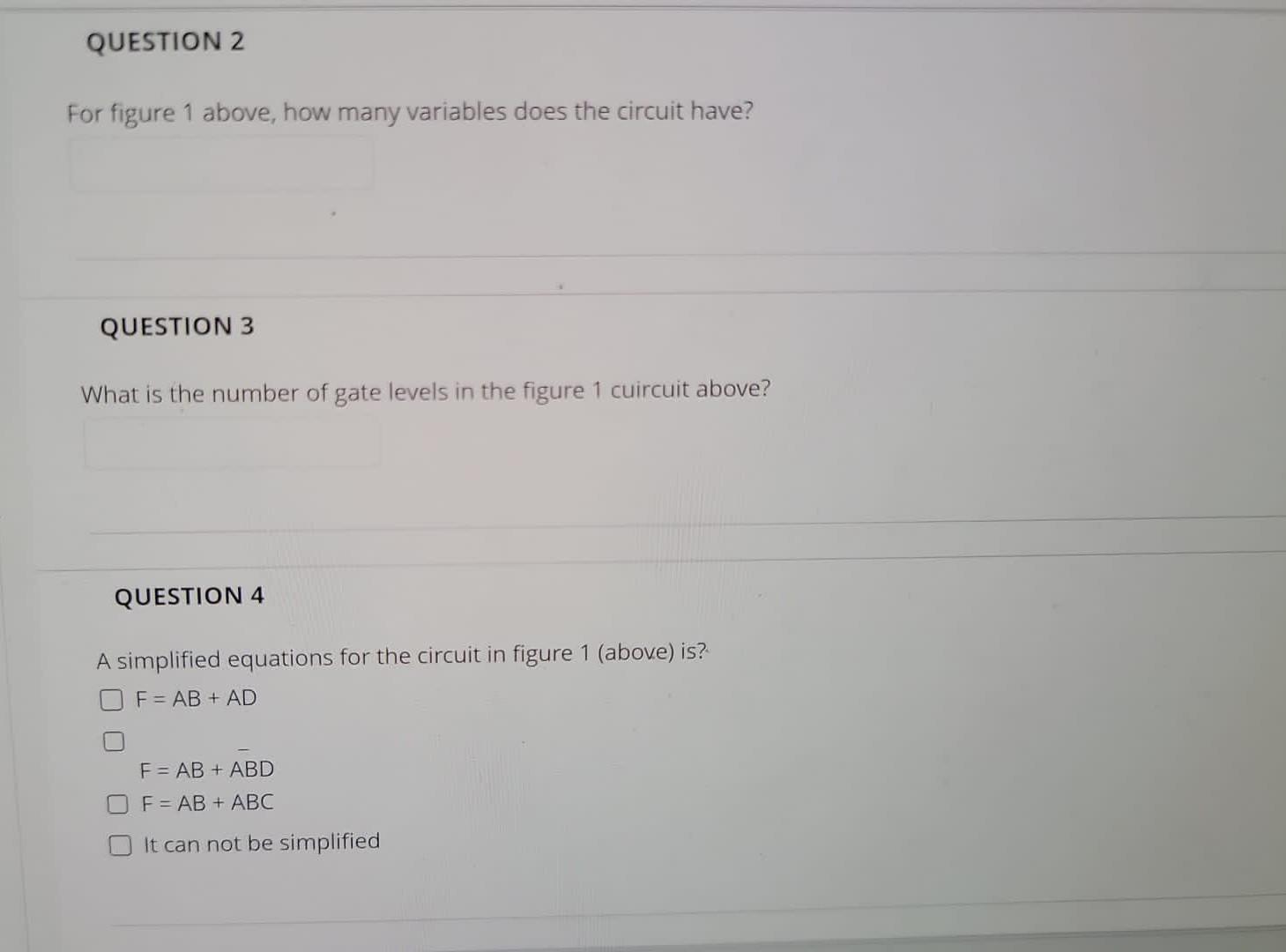

QUESTION 2 For figure 1 above, how many variables does the circuit have? QUESTION 3 What is the number of gate levels in the figure 1 cuircuit above? QUESTION 4 A simplified equations for the circuit in figure 1 (above) is? F = AB + AD F = AB + ABD F = AB + ABC It can not be simplified
