Assume that the ideal op amp in the circuit in the figure is operating in its linear Calculate the power delivered to th

Post by answerhappygod »

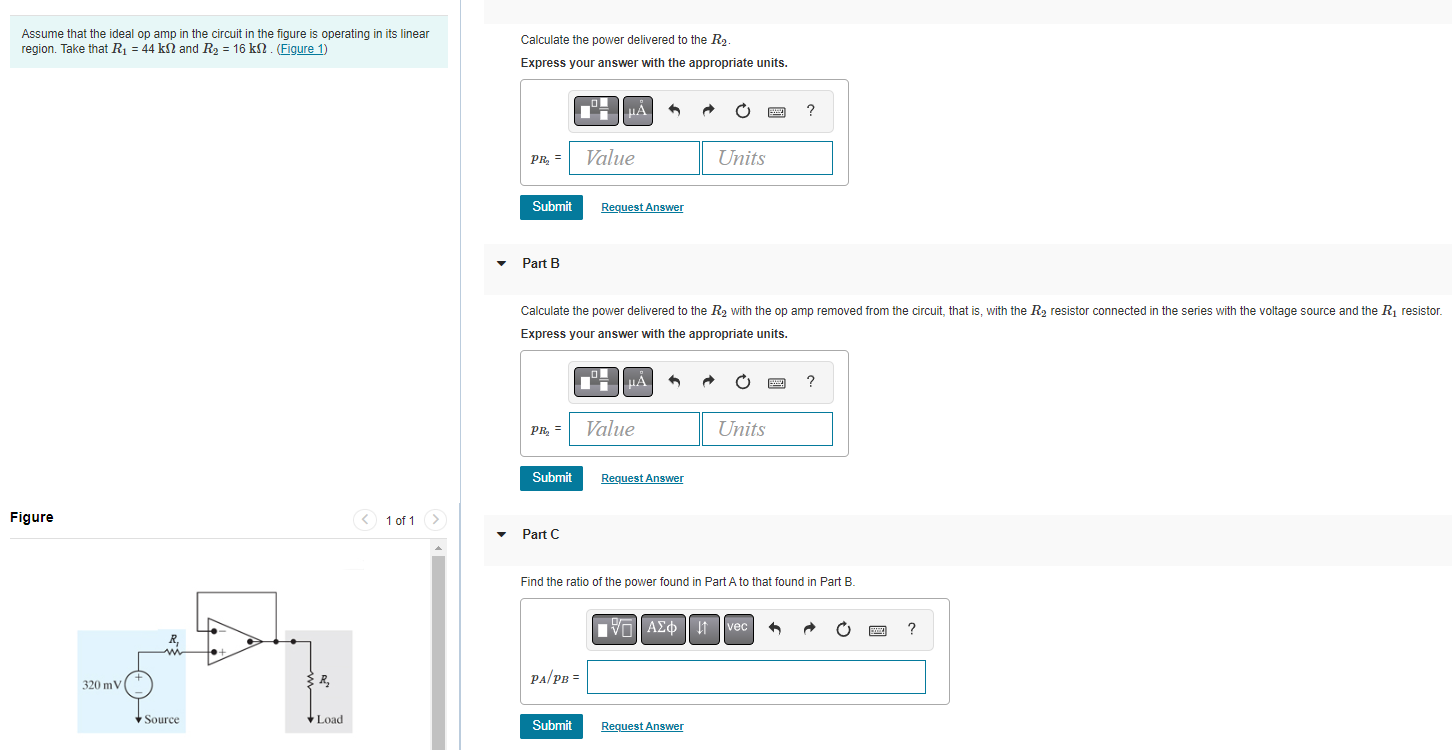

Assume That The Ideal Op Amp In The Circuit In The Figure Is Operating In Its Linear Calculate The Power Delivered To Th 1
Assume That The Ideal Op Amp In The Circuit In The Figure Is Operating In Its Linear Calculate The Power Delivered To Th 1 (63.77 KiB) Viewed 45 times
Assume that the ideal op amp in the circuit in the figure is operating in its linear Calculate the power delivered to the R2​. region. Take that R1​=44kΩ and R2​=16kΩ. (Figure 1) Express your answer with the appropriate units. - Part B Calculate the power delivered to the R2​ with the op amp removed from the circuit, that is, with the R2​ resistor connected in the series with the voltage source and the R1​ resistor. Express your answer with the appropriate units. Figure - Part C Find the ratio of the power found in Part A to that found in Part B.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
