F8.4 (15 Pts) Create a 8-1 multiplexer using combinations of the 2-1 multiplexer shown below. Draw a table for the 8-1 m

Post by answerhappygod »

F8 4 15 Pts Create A 8 1 Multiplexer Using Combinations Of The 2 1 Multiplexer Shown Below Draw A Table For The 8 1 M 1
F8 4 15 Pts Create A 8 1 Multiplexer Using Combinations Of The 2 1 Multiplexer Shown Below Draw A Table For The 8 1 M 1 (8.54 KiB) Viewed 27 times

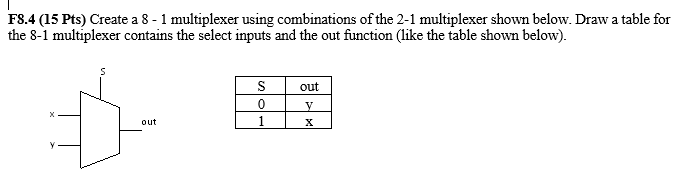

F8.4 (15 Pts) Create a 8-1 multiplexer using combinations of the 2-1 multiplexer shown below. Draw a table for the 8-1 multiplexer contains the select inputs and the out function (like the table shown below). Đ out S 0 1 out y
