F8.3 (20 Pts) We have four 4-bit numbers, wo-W3. Xo - X3. Yo - Y3 and zo - Zs. We want to select one of these, based on

[answerhappygod]

F8 3 20 Pts We Have Four 4 Bit Numbers Wo W3 Xo X3 Yo Y3 And Zo Zs We Want To Select One Of These Based On 1 (39.28 KiB) Viewed 25 times

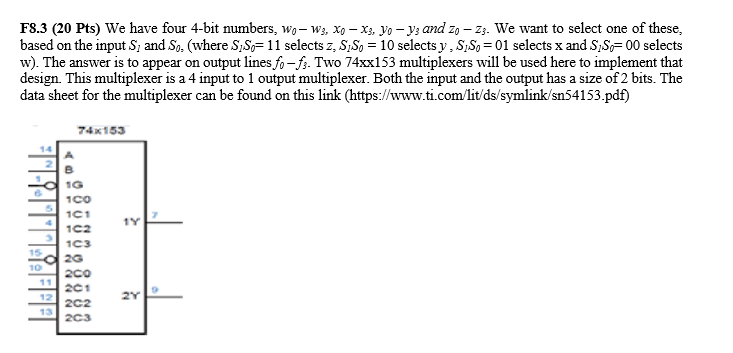

F8.3 (20 Pts) We have four 4-bit numbers, wo-W3. Xo - X3. Yo - Y3 and zo - Zs. We want to select one of these, based on the input S, and So. (where SS-11 selects z, SjSo = 10 selects y, SiSo01 selects x and SS=00 selects w). The answer is to appear on output lines fo-f3. Two 74xx153 multiplexers will be used here to implement that design. This multiplexer is a 4 input to 1 output multiplexer. Both the input and the output has a size of 2 bits. The data sheet for the multiplexer can be found on this link (https://www.ti.com/lit/ds/symlink/sn54153.pdf) 15- 10 12 13 B 74x153 1G 100 1C1 1C2 1C3 2G 200 201 2C2 2C3 1Y 2Y
