The dynamics of a turret actuated about its azimuth axis by a hydraulic motor can be linearized and modeled by 8 = w, w

Post by answerhappygod »

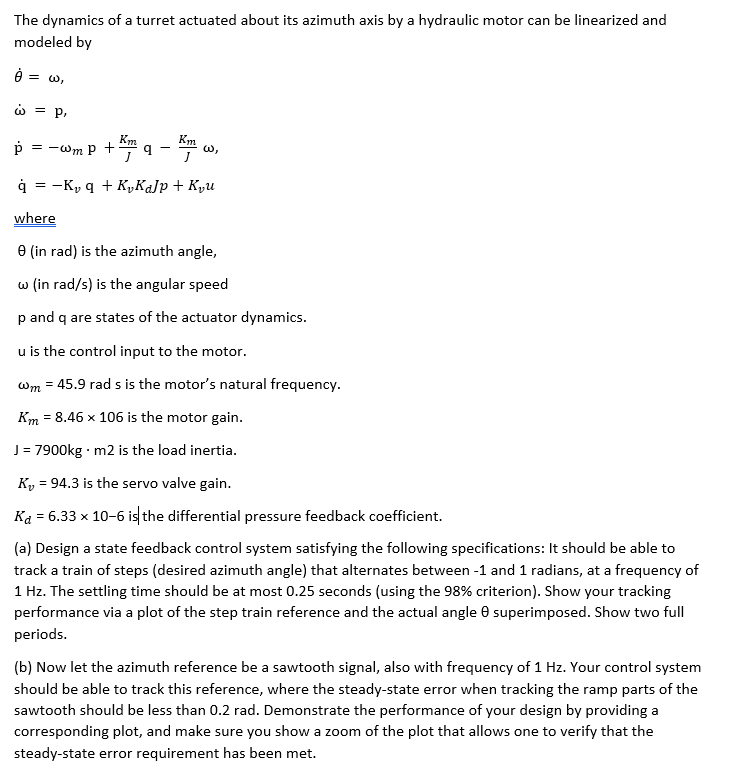

The Dynamics Of A Turret Actuated About Its Azimuth Axis By A Hydraulic Motor Can Be Linearized And Modeled By 8 W W 1
The Dynamics Of A Turret Actuated About Its Azimuth Axis By A Hydraulic Motor Can Be Linearized And Modeled By 8 W W 1 (42.17 KiB) Viewed 34 times
The dynamics of a turret actuated about its azimuth axis by a hydraulic motor can be linearized and modeled by 8 = w, w = P, -wmp + + Kmq - Km W, q = -K₂q + K₂KdJp + K₂u where 0 (in rad) is the azimuth angle, w (in rad/s) is the angular speed p and q are states of the actuator dynamics. u is the control input to the motor. wm = 45.9 rad s is the motor's natural frequency. Km = 8.46 x 106 is the motor gain. J = 7900kg • m2 is the load inertia. p = Kv = 94.3 is the servo valve gain. Kd = 6.33 x 10-6 is the differential pressure feedback coefficient. (a) Design a state feedback control system satisfying the following specifications: It should be able to track a train of steps (desired azimuth angle) that alternates between -1 and 1 radians, at a frequency of 1 Hz. The settling time should be at most 0.25 seconds (using the 98% criterion). Show your tracking performance via a plot of the step train reference and the actual angle superimposed. Show two full periods. (b) Now let the azimuth reference be a sawtooth signal, also with frequency of 1 Hz. Your control system should be able to track this reference, where the steady-state error when tracking the ramp parts of the sawtooth should be less than 0.2 rad. Demonstrate the performance of your design by providing a corresponding plot, and make sure you show a zoom of the plot that allows one to verify that the steady-state error requirement has been met.
