VDD = 5V
KP = 120 UA/V^2
- Please Do This Problem Very Clear Step By Step Vdd 5v Kp 120 Ua V 2 1 (79.27 KiB) Viewed 32 times
Please do this problem very clear step by step VDD = 5V KP = 120 UA/V^2
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Please do this problem very clear step by step VDD = 5V KP = 120 UA/V^2
Please do this problem very clear step by step
VDD = 5V
KP = 120 UA/V^2

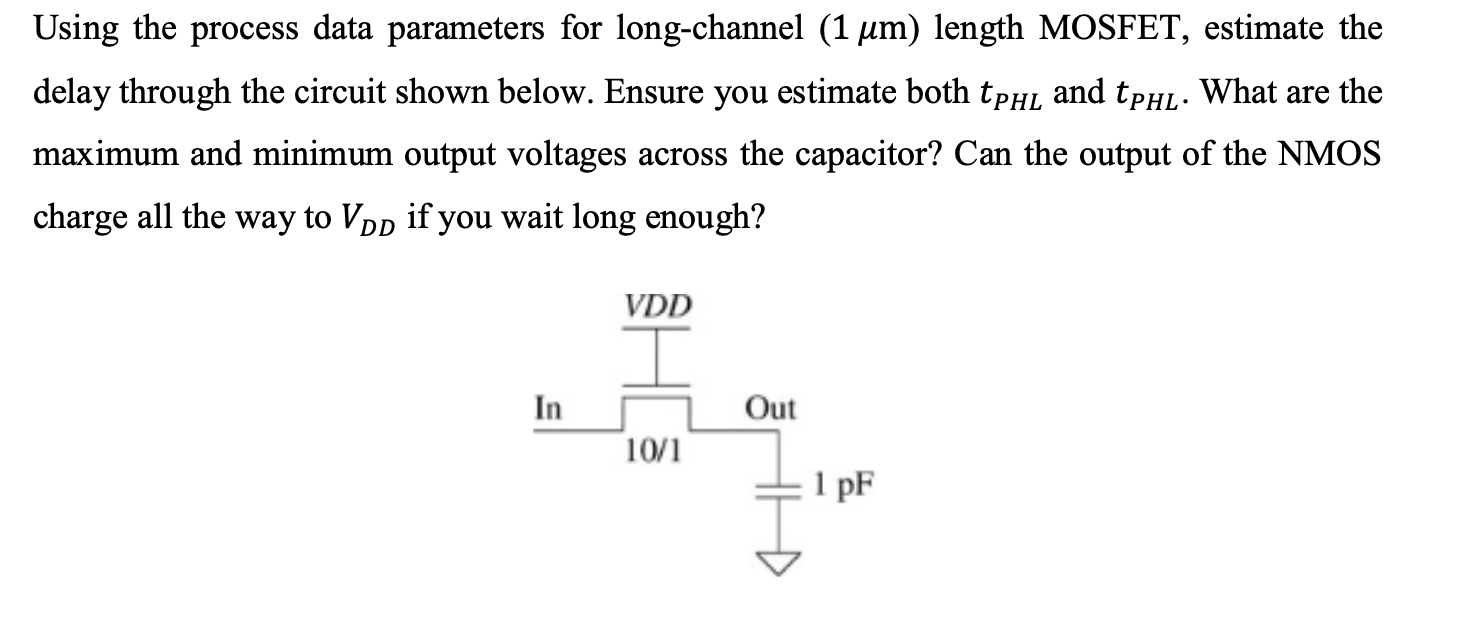

Using the process data parameters for long-channel (1 µm) length MOSFET, estimate the delay through the circuit shown below. Ensure you estimate both tpíɩ and tpíl. What are the maximum and minimum output voltages across the capacitor? Can the output of the NMOS charge all the way to VDD if you wait long enough? In VDD 10/1 Out 1 pF
VDD = 5V
KP = 120 UA/V^2
Using the process data parameters for long-channel (1 µm) length MOSFET, estimate the delay through the circuit shown below. Ensure you estimate both tpíɩ and tpíl. What are the maximum and minimum output voltages across the capacitor? Can the output of the NMOS charge all the way to VDD if you wait long enough? In VDD 10/1 Out 1 pF
