Given the timing diagram for the waveforms below: Assuming delay is negligible and Q(0) =0, draw the output Q timing dia

[answerhappygod]

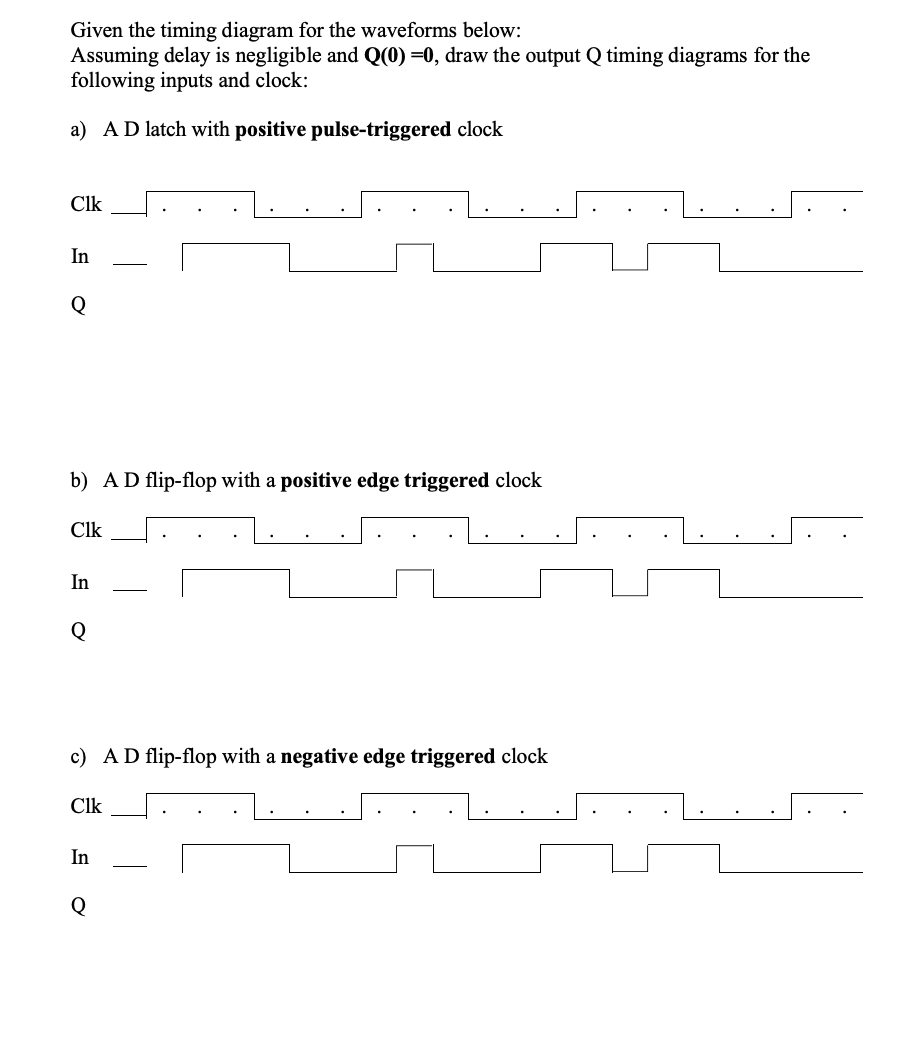

Given The Timing Diagram For The Waveforms Below Assuming Delay Is Negligible And Q 0 0 Draw The Output Q Timing Dia 1 (50.32 KiB) Viewed 40 times

Given the timing diagram for the waveforms below: Assuming delay is negligible and Q(0) =0, draw the output Q timing diagrams for the following inputs and clock: a) A D latch with positive pulse-triggered clock Clk In Q b) A D flip-flop with a positive edge triggered clock CIK In Q c) A D flip-flop with a negative edge triggered clock Clk In Q
