6 39 Calculate Vc T For T 0s In The Following Circuit T 5 Ms 5u T Ma 1k 1pfve T 192 The Switch Has Been Open For 1 (62.48 KiB) Viewed 36 times

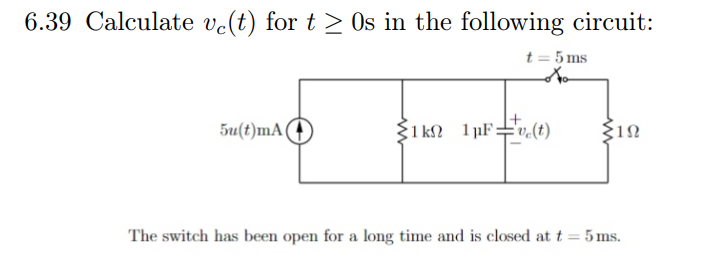

6.39 Calculate vċ(t) for t ≥ 0s in the following circuit: t = 5 ms 5u(t)mA 1k 1pFve(t) {192 The switch has been open for a long time and is closed at t = 5 ms.
7.2 Which of the following unknown circuit elements in represented by the impedance (Z). Given: w= 1 rad/s. + V(t) - Z V(1) 10 -1/2 0 1/2 3m/2 ZT I(t) 5 tim -1/2 1(1) 10 (4) Inductor of 2 H (5) Resistor of 202 and Inductor of 2 H (6) Inductor of 0.5 H 0 (1) Resistor of 202 and Inductor of 0.5 H (2) Capacitor of 2 F (3) Resistor of 20 and Capacitor of 0.5 F (7) Capacitor of 0.5 F (8) Resistor of 20 and Capacitor of 2 F -10 TT/2 11 341/2 2m tin
