Re www www Raz VOD 8. The circuit shown has the following circuit values: Rp - 3 kQ. Rs1 KQ. RG1-10 MQ, RG2-10 MQ and VD

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Re www www Raz VOD 8. The circuit shown has the following circuit values: Rp - 3 kQ. Rs1 KQ. RG1-10 MQ, RG2-10 MQ and VD

Post by answerhappygod »

Re Www Www Raz Vod 8 The Circuit Shown Has The Following Circuit Values Rp 3 Kq Rs1 Kq Rg1 10 Mq Rg2 10 Mq And Vd 1
Re Www Www Raz Vod 8 The Circuit Shown Has The Following Circuit Values Rp 3 Kq Rs1 Kq Rg1 10 Mq Rg2 10 Mq And Vd 1 (48.61 KiB) Viewed 38 times

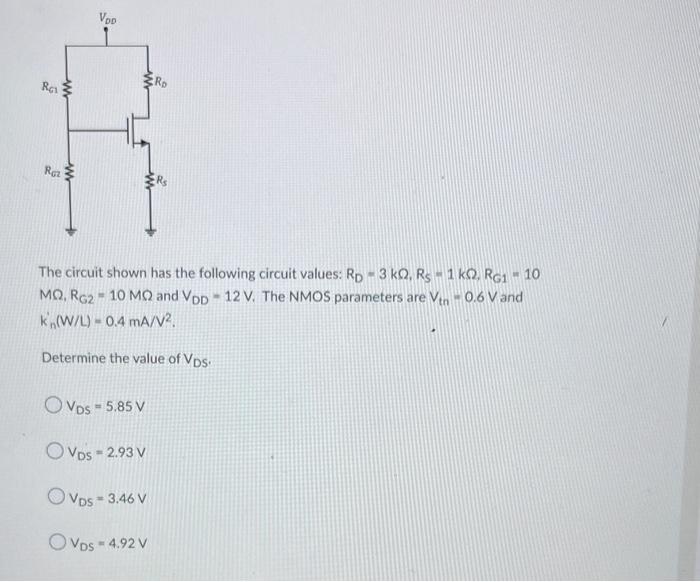

Re www www Raz VOD 8. The circuit shown has the following circuit values: Rp - 3 kQ. Rs1 KQ. RG1-10 MQ, RG2-10 MQ and VDD 12 V. The NMOS parameters are Vtn - 0.6 V and k(W/L)-0.4 mA/V². Determine the value of VDs. OVDs - 5.85 V OVDs -2.93 V Ro VDS - 3.46 V OVDS - 4.92 V
