Question #14*: Consider the following system whose state space representation is as follows, [x,(t)] 0 1x,(t) x₂ (t) -8

[answerhappygod]

Question 14 Consider The Following System Whose State Space Representation Is As Follows X T 0 1x T X T 8 1 (23.52 KiB) Viewed 50 times

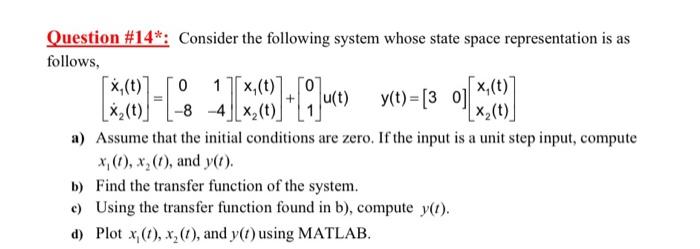

Question #14*: Consider the following system whose state space representation is as follows, [x,(t)] 0 1x,(t) x₂ (t) -8 -4x₂(t) y(t)=[30][x, a) Assume that the initial conditions are zero. If the input is a unit step input, compute x, (t), x₂ (t), and y(t). b) Find the transfer function of the system. c) Using the transfer function found in b), compute y(t). d) Plot x, (1), x₂ (1), and y(t) using MATLAB.
