4. Assume a communication system with 100kHz-wide channels and guard bands of 10kHz, with desired channel at 2GHz. What

Post by answerhappygod »

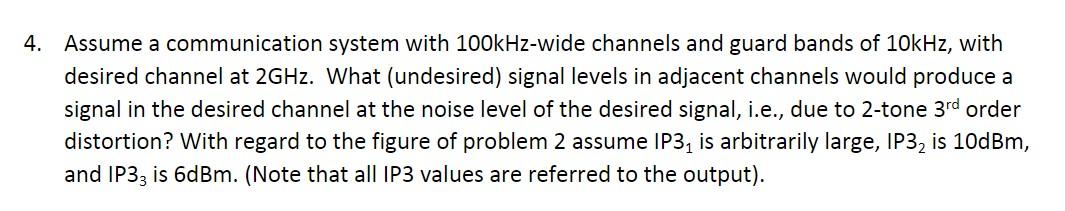

4 Assume A Communication System With 100khz Wide Channels And Guard Bands Of 10khz With Desired Channel At 2ghz What 1
4 Assume A Communication System With 100khz Wide Channels And Guard Bands Of 10khz With Desired Channel At 2ghz What 1 (46.75 KiB) Viewed 37 times
4. Assume a communication system with 100kHz-wide channels and guard bands of 10kHz, with desired channel at 2GHz. What (undesired) signal levels in adjacent channels would produce a signal in the desired channel at the noise level of the desired signal, i.e., due to 2-tone 3rd order distortion? With regard to the figure of problem 2 assume IP3₁ is arbitrarily large, IP3₂ is 10dBm, and IP33 is 6dBm. (Note that all IP3 values are referred to the output).
