Question 6 2244TOSAWNT X 2 HAHAHA 6 7 8 9 10 11 12 13 14 module lrotator (a, left_rotated, shamt); input logic [3:01 a;

[answerhappygod]

Question 6 2244tosawnt X 2 Hahaha 6 7 8 9 10 11 12 13 14 Module Lrotator A Left Rotated Shamt Input Logic 3 01 A 1 (108.89 KiB) Viewed 47 times

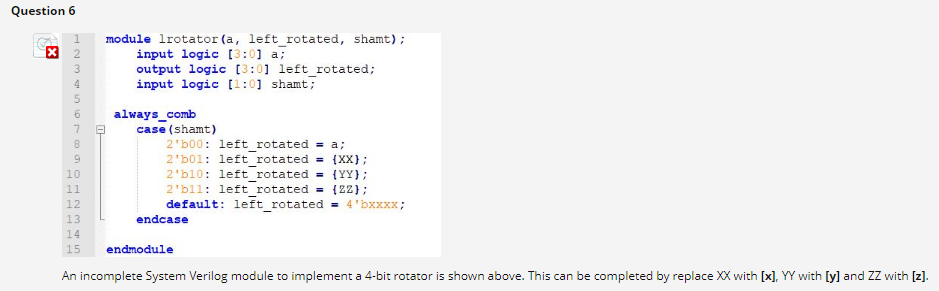

Question 6 2244TOSAWNT X 2 HAHAHA 6 7 8 9 10 11 12 13 14 module lrotator (a, left_rotated, shamt); input logic [3:01 a; output logic [3:0] left_rotated; input logic [1:0] shamt; always_comb case (shamt) 2'b00: left_rotated = a; 2'b01: left_rotated = {XX); 2'b10: left_rotated = {YY); 2'b11: left_rotated = {22); default: left_rotated = 4'bxxxx; endcase 15 An incomplete System Verilog module to implement a 4-bit rotator is shown above. This can be completed by replace XX with [x], YY with [y] and ZZ with [z]. endmodule
