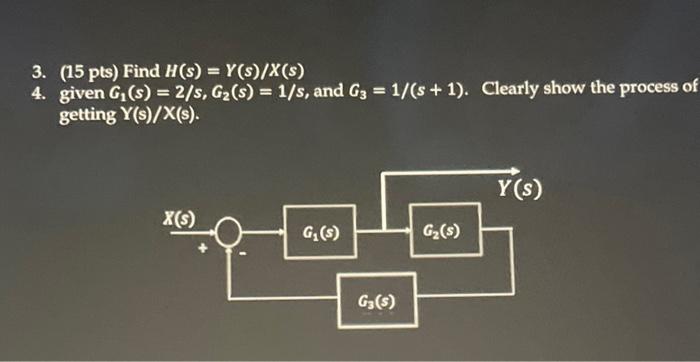

3. (15 pts) Find H(s) = Y(s)/X(s) 4. given G₁(s) = 2/s, G₂ (s) = 1/s, and G3 = 1/(s + 1). Clearly show the process of getting Y(s)/X(s). X(s) G₁(s) G3(s) G₂ (s) Y(s)
