don't know if I'm doing this right

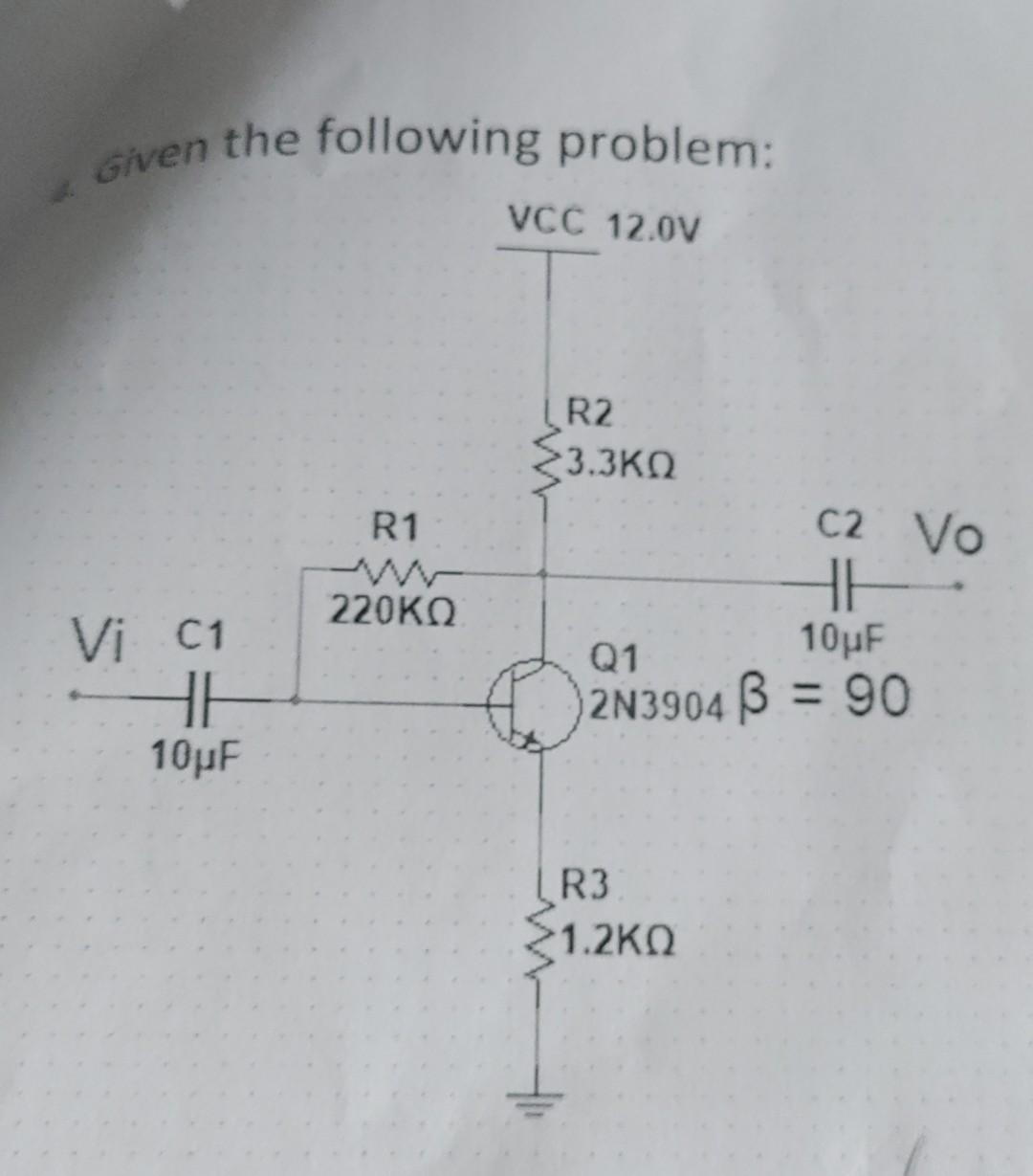

Given the following problem: Vi C1 36 10µF R1 220KQ VCC 12.0V (R2 23.3ΚΩ C2 Vo Q1 10μF 2N3904 B = 90 R3 1.2KQ

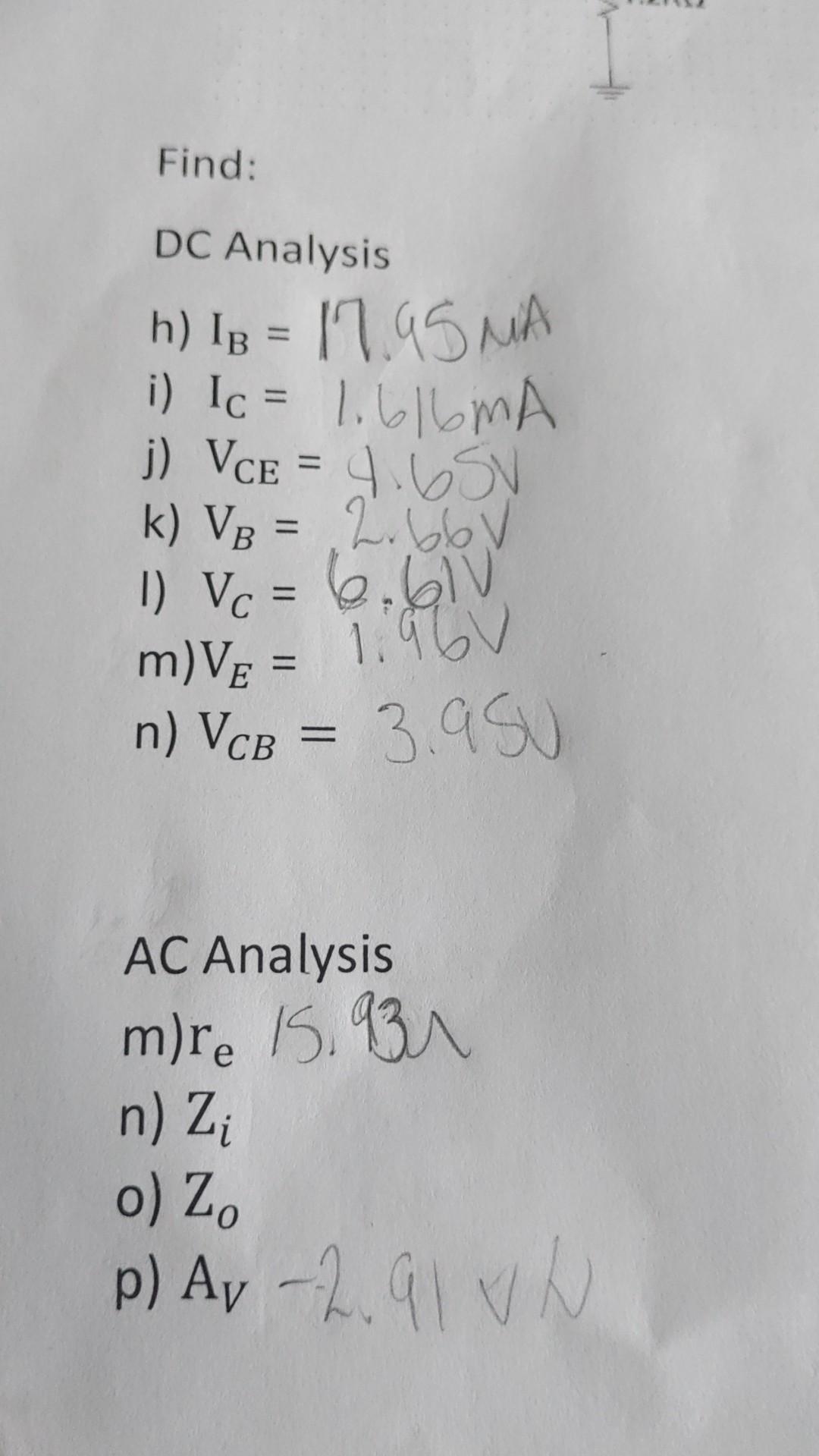

Find: DC Analysis h) IB = 17.95 MA i) Ic = 1.6|6mA j) VCE = 4.65V k) VB = 2.66V 1) Vc = 6,61V m) VE = 1:96V n) VcB = 3.95 AC Analysis m)re 15.931 n) Zi o) Zo p) Av -2.91 V N
