An op-amp has slew rate of 2.5V/us and gain of 20dB. If the input signal of the amplifier has frequency in [0, 100kHz].

Post by answerhappygod »

An Op Amp Has Slew Rate Of 2 5v Us And Gain Of 20db If The Input Signal Of The Amplifier Has Frequency In 0 100khz 1
An Op Amp Has Slew Rate Of 2 5v Us And Gain Of 20db If The Input Signal Of The Amplifier Has Frequency In 0 100khz 1 (20.46 KiB) Viewed 28 times

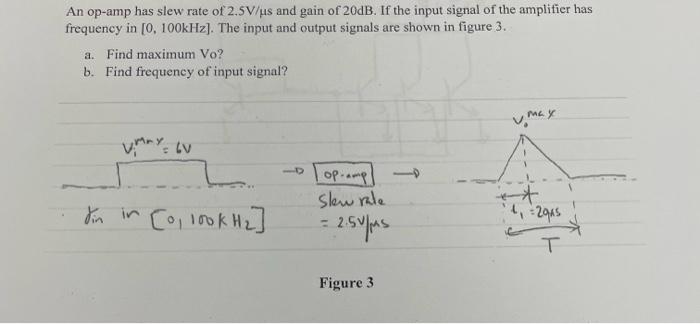

An op-amp has slew rate of 2.5V/us and gain of 20dB. If the input signal of the amplifier has frequency in [0, 100kHz]. The input and output signals are shown in figure 3. a. Find maximum Vo? b. Find frequency of input signal? = tv din in [0, 100K H₂] - op-amp slew rale = 2.5V/|s Figure 3 May = 2945 T
