1. Develop a matching network to match a 50 ohm transmission line to a 100+j100 ohm load at 3 GHz. Demonstrate its perfo

Post by answerhappygod »

1 Develop A Matching Network To Match A 50 Ohm Transmission Line To A 100 J100 Ohm Load At 3 Ghz Demonstrate Its Perfo 1
1 Develop A Matching Network To Match A 50 Ohm Transmission Line To A 100 J100 Ohm Load At 3 Ghz Demonstrate Its Perfo 1 (33.83 KiB) Viewed 29 times

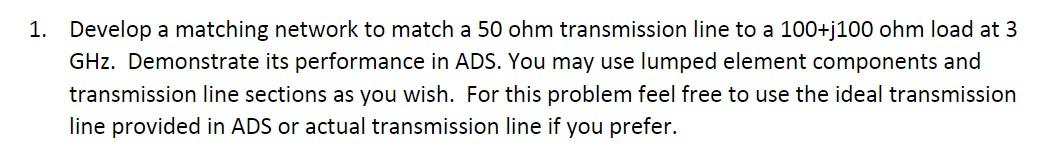

1. Develop a matching network to match a 50 ohm transmission line to a 100+j100 ohm load at 3 GHz. Demonstrate its performance in ADS. You may use lumped element components and transmission line sections as you wish. For this problem feel free to use the ideal transmission line provided in ADS or actual transmission line if you prefer.
