Figure 4 Problem 5 (15 points) Three transistors shown in figure 2 are identical with VBE-0.7V and B=100. Find the volta

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Figure 4 Problem 5 (15 points) Three transistors shown in figure 2 are identical with VBE-0.7V and B=100. Find the volta

Post by answerhappygod »

Figure 4 Problem 5 15 Points Three Transistors Shown In Figure 2 Are Identical With Vbe 0 7v And B 100 Find The Volta 1
Figure 4 Problem 5 15 Points Three Transistors Shown In Figure 2 Are Identical With Vbe 0 7v And B 100 Find The Volta 1 (49.96 KiB) Viewed 23 times

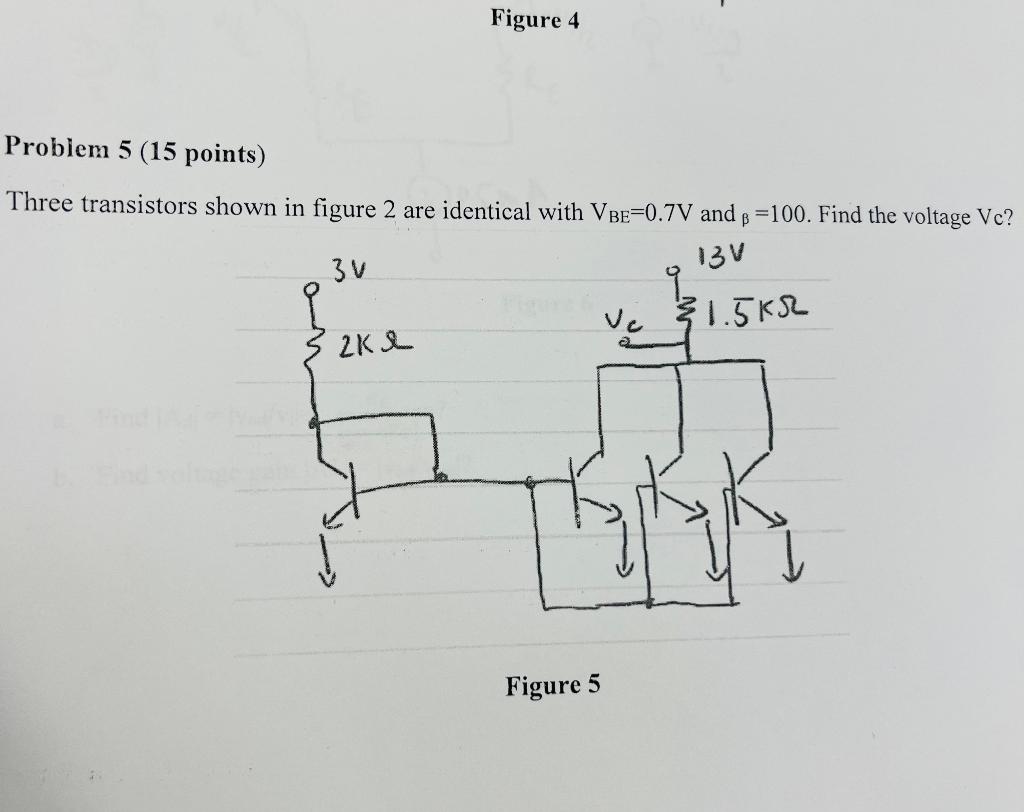

Figure 4 Problem 5 (15 points) Three transistors shown in figure 2 are identical with VBE-0.7V and B=100. Find the voltage Vc? 3 V 13V €1.5KR 2K & Figure 5 Vc K₂K
