Problem 5 (15 points) Three transistors shown in figure 2 are identical with VBE=0.7V and B =100. Find the voltage Vc? 1

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Problem 5 (15 points) Three transistors shown in figure 2 are identical with VBE=0.7V and B =100. Find the voltage Vc? 1

Post by answerhappygod »

Problem 5 15 Points Three Transistors Shown In Figure 2 Are Identical With Vbe 0 7v And B 100 Find The Voltage Vc 1 1
Problem 5 15 Points Three Transistors Shown In Figure 2 Are Identical With Vbe 0 7v And B 100 Find The Voltage Vc 1 1 (1.21 MiB) Viewed 34 times

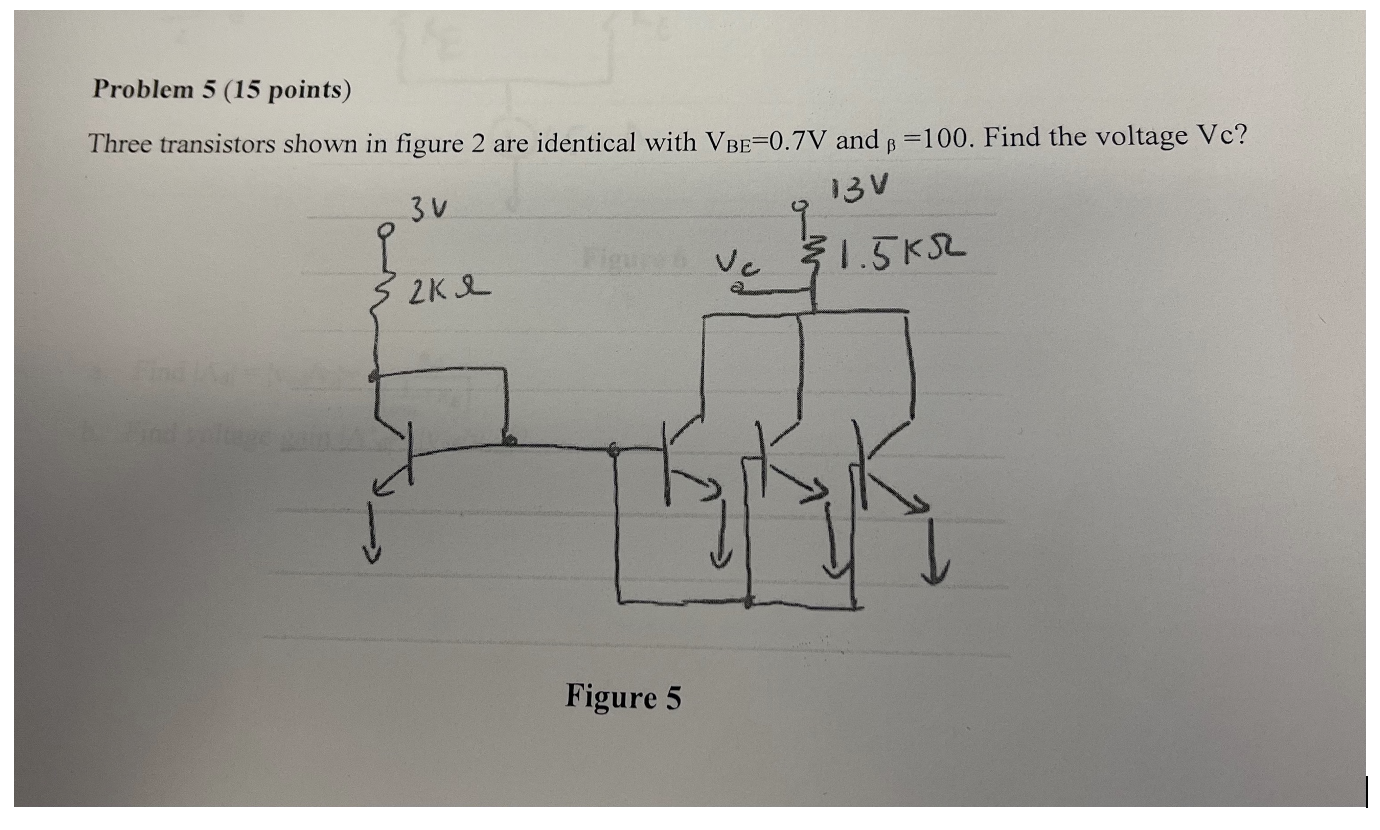

Problem 5 (15 points) Three transistors shown in figure 2 are identical with VBE=0.7V and B =100. Find the voltage Vc? 13V 오 Figur Ve 1.5K52 ind i 3. V 2K BR Figure 5
