For the next problem, consider that all the OpAmps are supplied with +15V and -15V, calculate the value of Vo2.

Post by answerhappygod »

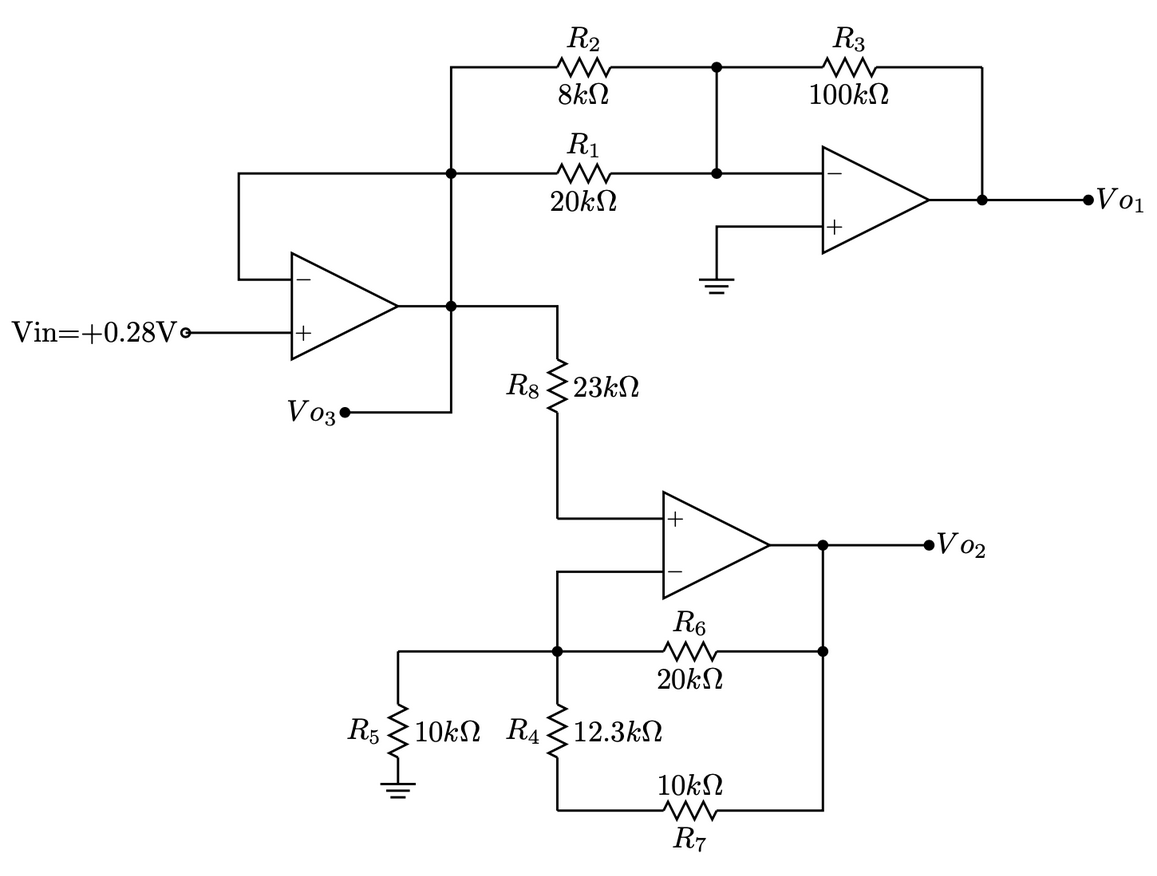

For the next problem, consider that all the OpAmps are suppliedwith +15V and -15V, calculate the value of Vo2.
For The Next Problem Consider That All The Opamps Are Supplied With 15v And 15v Calculate The Value Of Vo2 1
For The Next Problem Consider That All The Opamps Are Supplied With 15v And 15v Calculate The Value Of Vo2 1 (85.52 KiB) Viewed 26 times
Vin=+0.28Ve V03 μήν R2 M 8ΚΩ R₁ 20kΩ R8 Σ23kΩ R6 20ΚΩ R5 Σ10kΩ R4Σ12.3ΚΩ 10ΚΩ R7 R3 100ΚΩ V02 •Voi
