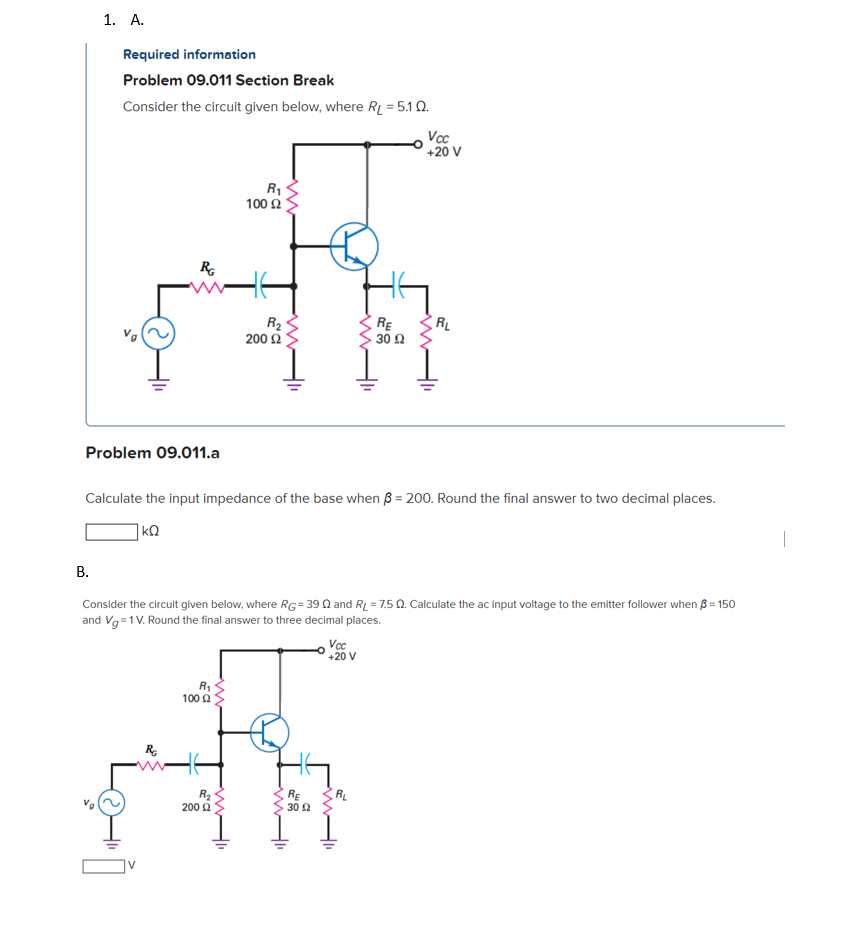

1. A. Required information Problem 09.011 Section Break Consider the circuit given below, where RL = 5.10. B. Problem 09

[answerhappygod]

1 A Required Information Problem 09 011 Section Break Consider The Circuit Given Below Where Rl 5 10 B Problem 09 1 (99.01 KiB) Viewed 62 times

1. A. Required information Problem 09.011 Section Break Consider the circuit given below, where RL = 5.10. B. Problem 09.011.a RG RG R₁ 100 £2 R₁ 100 £2 R₂ 200 £2 Calculate the input impedance of the base when ß = 200. Round the final answer to two decimal places. | ΚΩ R₂ 200 £2 Consider the circuit given below, where RG-39 0 and RL = 7.5 Q. Calculate the ac input voltage to the emitter follower when 3 = 150 and Vg = 1 V. Round the final answer to three decimal places. 凡 30 - 30 Ω RE 30 Ω Vcc +20 V Vcc +20 V RL RL
