For the next problem, consider that all the OpAmps are supplied with +15V and -15V, calculate the value of Vo1. R2 8ΚΩ R

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

For the next problem, consider that all the OpAmps are supplied with +15V and -15V, calculate the value of Vo1. R2 8ΚΩ R

Post by answerhappygod »

1
1 (88.83 KiB) Viewed 33 times

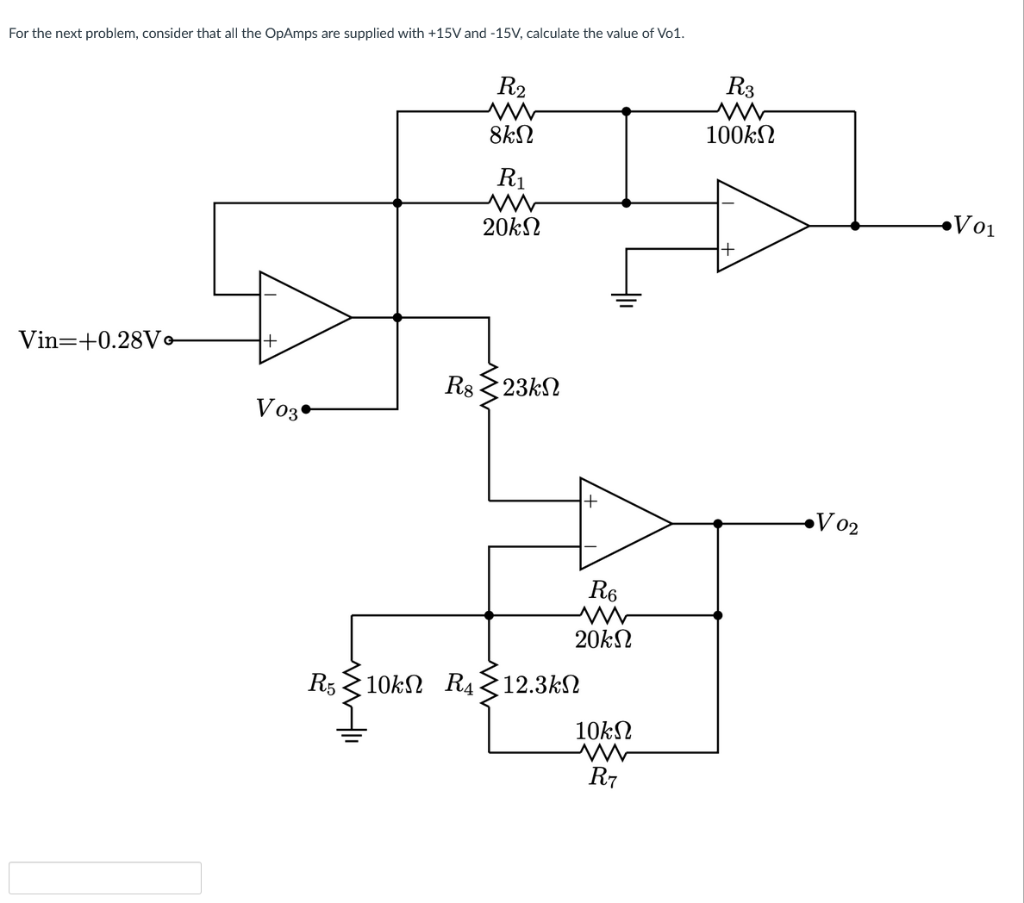

For the next problem, consider that all the OpAmps are supplied with +15V and -15V, calculate the value of Vo1. R2 8ΚΩ R₁ 20ΚΩ Vin=+0.28Ve Vog• R5 R8 2 23kΩ R6 20kΩ 10kΩ R4312.3ΚΩ 10ΚΩ R7 R3 100ΚΩ V02 •V01
