Design Your Circuit Using Op Amps To Produce The Control Signal As Shown In Figure 5 A Draw Your Circuit B Show You 1 (16.9 KiB) Viewed 37 times
IT'S figure 4 just a typo

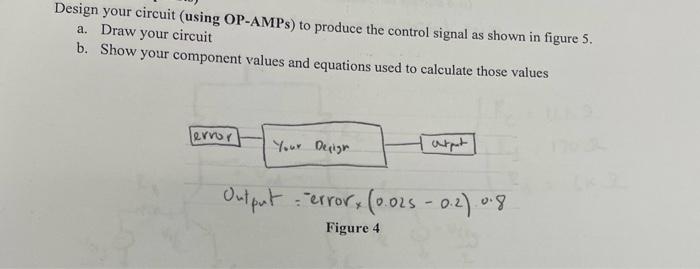

Design your circuit (using OP-AMPS) to produce the control signal as shown in figure 5. a. Draw your circuit b. Show your component values and equations used to calculate those values error Your Design output Output error, (0.025 -0.2).0.8 Figure 4 -
