D Question 2 For the next problem, consider that all the OpAmps are supplied with +15V and -15V, calculate the value of

Post by answerhappygod »

D Question 2 For The Next Problem Consider That All The Opamps Are Supplied With 15v And 15v Calculate The Value Of 1
D Question 2 For The Next Problem Consider That All The Opamps Are Supplied With 15v And 15v Calculate The Value Of 1 (79.55 KiB) Viewed 33 times

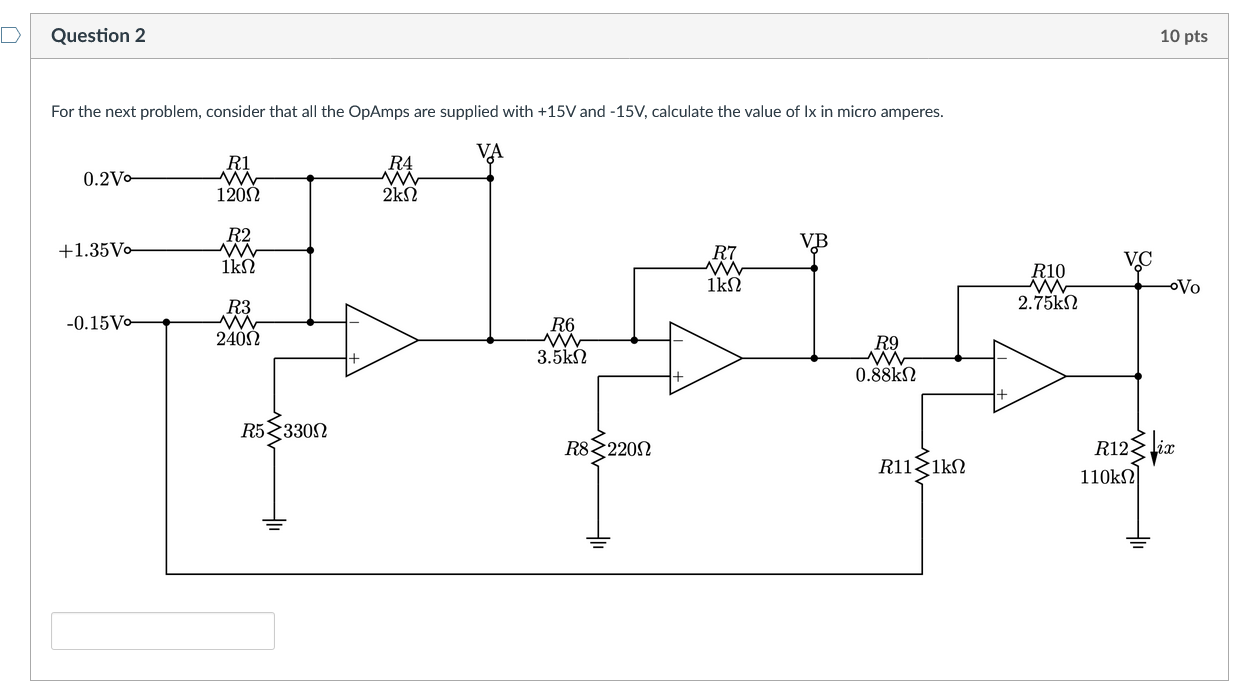

D Question 2 For the next problem, consider that all the OpAmps are supplied with +15V and -15V, calculate the value of Ix in micro amperes. VA 0.2V0- +1.35Ve -0.15Ve R1 ww 120Ω R2 M 1ΚΩ R3 ww 240Ω R523309 R4 w 2ΚΩ R6 Mw 3.5ΚΩ R832209 R7 ww 1kΩ 0.88ΚΩ R11ΣΙΚΩ R10 www 2.75ΚΩ VC 10 pts R12ix 110kΩ Vo
