For the next problem, consider that all the OpAmps are supplied with +15V and -15V, calculate the value of Vo2. V₁ = 0.1

Post by answerhappygod »

For The Next Problem Consider That All The Opamps Are Supplied With 15v And 15v Calculate The Value Of Vo2 V 0 1 1
For The Next Problem Consider That All The Opamps Are Supplied With 15v And 15v Calculate The Value Of Vo2 V 0 1 1 (46.69 KiB) Viewed 40 times

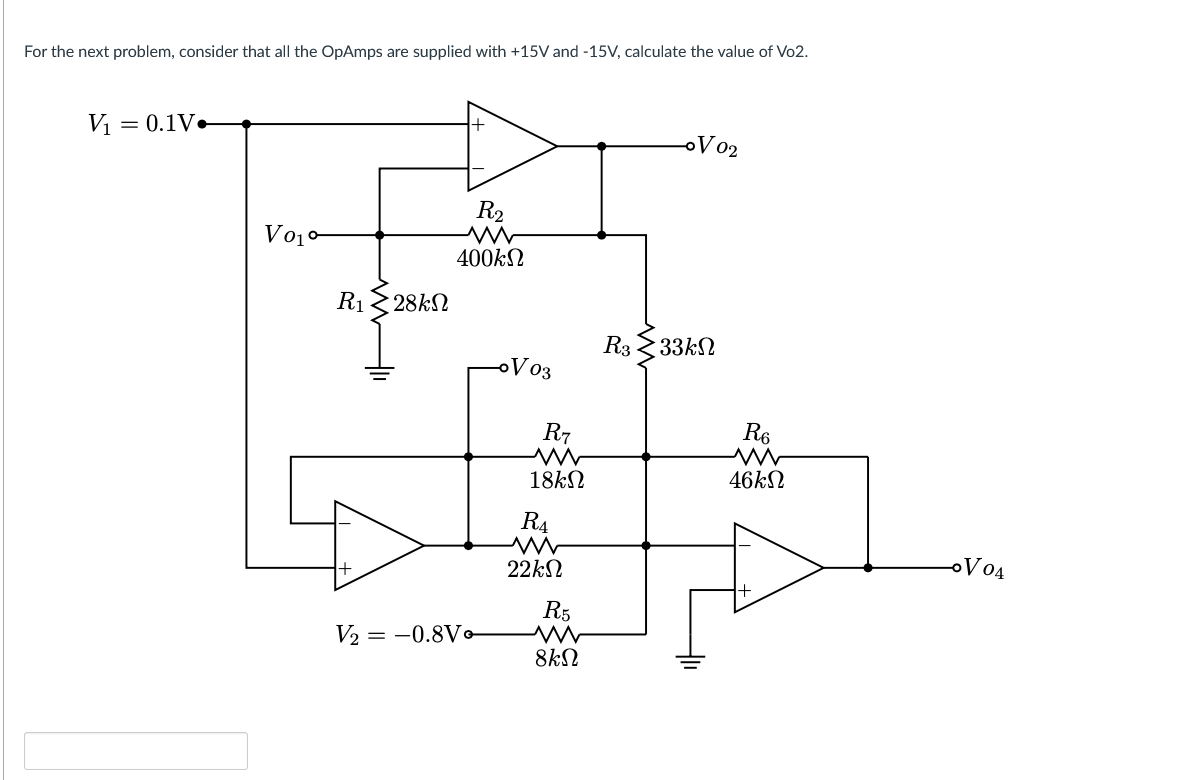

For the next problem, consider that all the OpAmps are supplied with +15V and -15V, calculate the value of Vo2. V₁ = 0.1V. Voo R₁ :28ΚΩ + R₂ ww 400ΚΩ V2 = -0.8Ve V03 R7 18ΚΩ RA 22ΚΩ R5 8ΚΩ R3 •VO2 33ΚΩ R6 46ΚΩ V04
