Consider the amplifier shown. Assume that the transistor has the following small signal parameters: A gm = 4 x 10-³2 ro=

Post by answerhappygod »

Consider The Amplifier Shown Assume That The Transistor Has The Following Small Signal Parameters A Gm 4 X 10 2 Ro 1
Consider The Amplifier Shown Assume That The Transistor Has The Following Small Signal Parameters A Gm 4 X 10 2 Ro 1 (26.53 KiB) Viewed 32 times

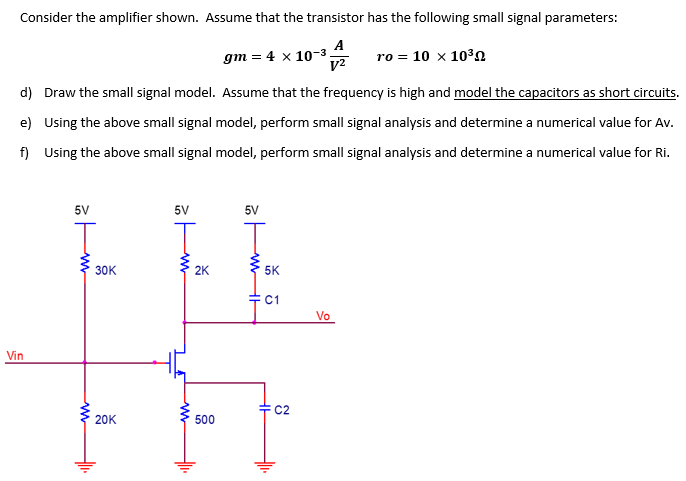

Consider the amplifier shown. Assume that the transistor has the following small signal parameters: A gm = 4 x 10-³2 ro= 10 x 10³ d) Draw the small signal model. Assume that the frequency is high and model the capacitors as short circuits. e) Using the above small signal model, perform small signal analysis and determine a numerical value for Av. f) Using the above small signal model, perform small signal analysis and determine a numerical value for Ri. Vin 5V ww 30K 20K 5V www 2K 500 5V wwwH 5K C1 C2 Vo
