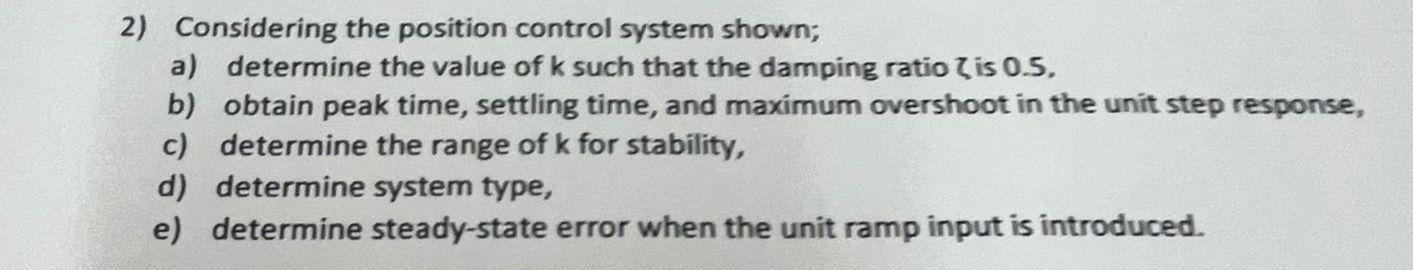

2) Considering the position control system shown; a) determine the value of k such that the damping ratio (is 0.5, b) obtain peak time, settling time, and maximum overshoot in the unit step response, c) determine the range of k for stability, d) determine system type, e) determine steady-state error when the unit ramp input is introduced.
R(s) k 16 S+ 0.8 C(s)
