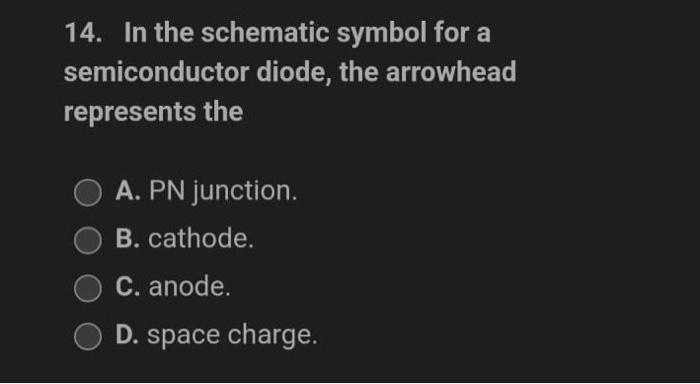

14. In the schematic symbol for a semiconductor diode, the arrowhead represents the A. PN junction. B. cathode. C. anode. OD. space charge.

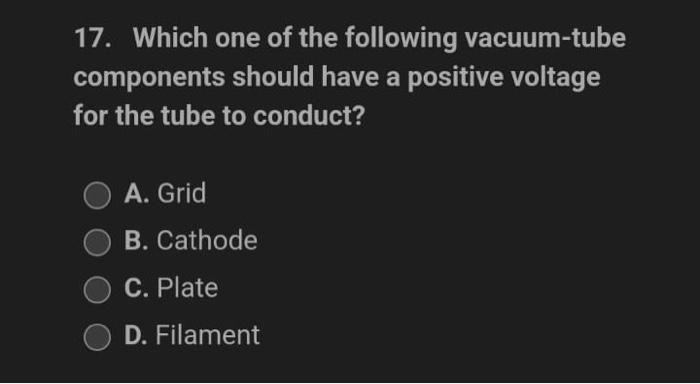

17. Which one of the following vacuum-tube components should have a positive voltage for the tube to conduct? A. Grid B. Cathode C. Plate O D. Filament
