(a) How the electric field across an open circuited pn junction is created. What would cause the barrier potential in Si

Post by answerhappygod »

A How The Electric Field Across An Open Circuited Pn Junction Is Created What Would Cause The Barrier Potential In Si 1
A How The Electric Field Across An Open Circuited Pn Junction Is Created What Would Cause The Barrier Potential In Si 1 (48.97 KiB) Viewed 26 times

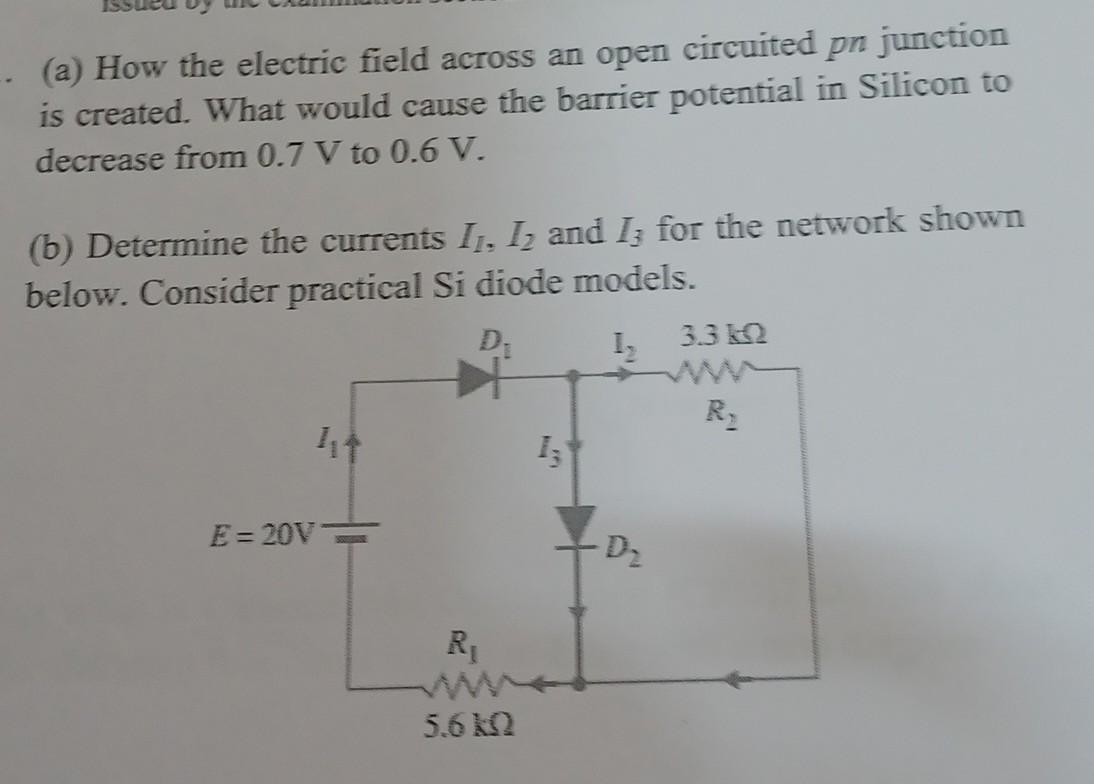

(a) How the electric field across an open circuited pn junction is created. What would cause the barrier potential in Silicon to decrease from 0.7 V to 0.6 V. (b) Determine the currents I1, I2 and I, for the network shown below. Consider practical Si diode models. D. E=20V= R₁ 5.6 KQ 3.3kQ R₂
