An Unknown Temperature Is Measured With A Type K Thermocouple A Thermocouple Voltage Of 2602 Uv Is Measured If The Col 1 (31.92 KiB) Viewed 30 times

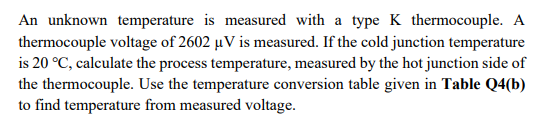

An unknown temperature is measured with a type K thermocouple. A thermocouple voltage of 2602 µV is measured. If the cold junction temperature is 20 °C, calculate the process temperature, measured by the hot junction side of the thermocouple. Use the temperature conversion table given in Table Q4(b) to find temperature from measured voltage.
Table Q4(b) Temperature (°C) versus emf (µV) for type K thermocouple with 0 °C reference. deg C 0 1 3 4 5 6 7 8 0 0 39 119 158 198 238 277 317 10 397 437 477 517 557 597 637 677 718 20 798 838 879 919 960 1000 1041 1081 1122 30 1203 1244 1285 1326 1366 1407 1448 1489 1530 1735 1776 1817 1858 1899 1941 2230 2271 2312 2354 2395 2685 2727 2768 2810 40 1612 1653 1694 50 2023 2064 2106 2147 2188 60 2436 2478 2519 2561 2602 2644 70 2851 2893 2934 2976 3017 3059 3100 3142 80 3267 3308 3350 3391 3433 3474 3516 90 3682 3723 3765 3806 3848 3889 3931 100 4096 4138 4179 4220 4262 3184 3225 3557 3599 3640 4013 4055 3972 4303 4344 4385 4427 4468 2 79 9 357 758 1163 1571 1982
