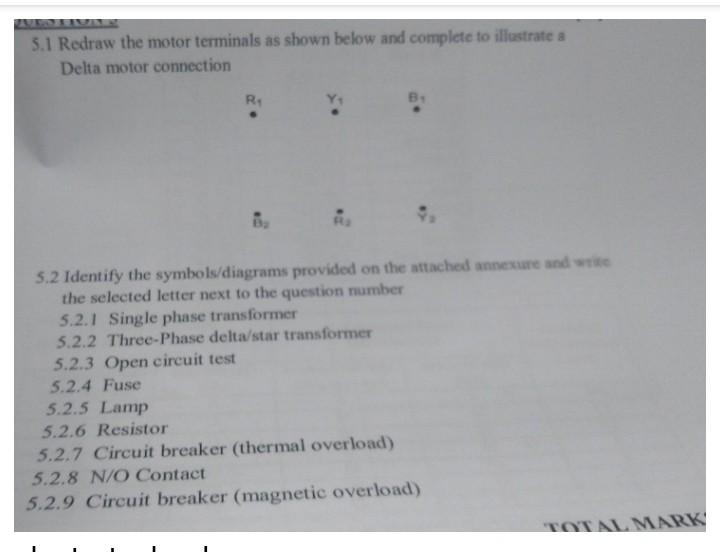

5.1 Redraw the motor terminals as shown below and complete to illustrate a Delta motor connection R₁ R₂ 5.2.3 Open circuit test 5.2.4 Fuse 5.2.1 Single phase transformer 5.2.2 Three-Phase delta/star transformer 5.2 Identify the symbols/diagrams provided on the attached annexure and write the selected letter next to the question number B₁ 5.2.5 Lamp 5.2.6 Resistor 5.2.7 Circuit breaker (thermal overload) 9. 5.2.8 N/O Contact 5.2.9 Circuit breaker (magnetic overload) TOTAL MARK
