Please Tell Me The Answer By Tonight 1 (134.04 KiB) Viewed 19 times

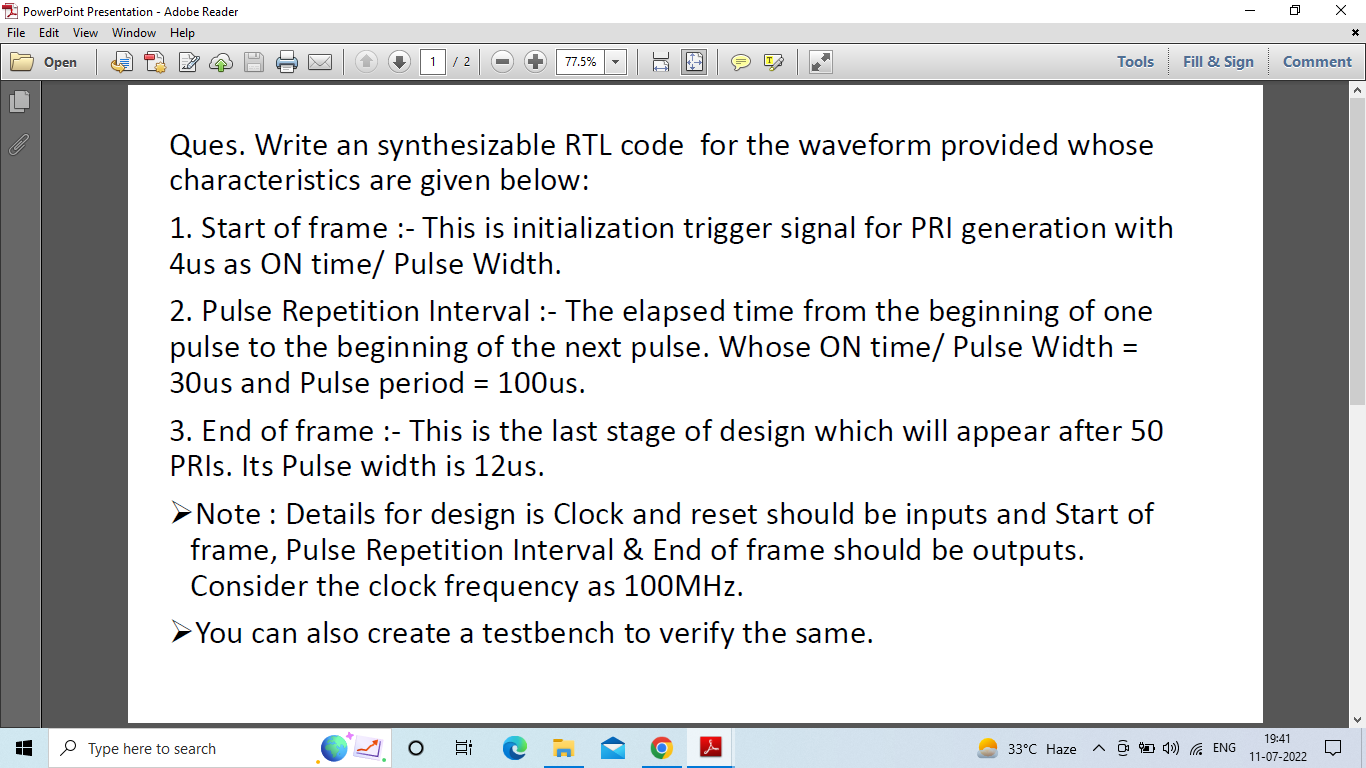

PowerPoint Presentation - Adobe Reader File Edit View Window Help Open AH 2 CS 77.5% Ques. Write an synthesizable RTL code for the waveform provided whose characteristics are given below: Tools 1. Start of frame :- This is initialization trigger signal for PRI generation with 4us as ON time/ Pulse Width. 2. Pulse Repetition Interval :- The elapsed time from the beginning of one pulse to the beginning of the next pulse. Whose ON time/ Pulse Width = 30us and Pulse period = 100us. Type here to search 3. End of frame :- This is the last stage of design which will appear after 50 PRIs. Its Pulse width is 12us. Note: Details for design is Clock and reset should be inputs and Start of frame, Pulse Repetition Interval & End of frame should be outputs. Consider the clock frequency as 100MHz. ➤You can also create a testbench to verify the same. E: Fill & Sign 33°C Haze ^4) (ENG Comment 19:41 11-07-2022 0
PowerPoint Presentation - Adobe Reader File Edit View Window Help Open AH Start of frame (SOF) Pulse Repetition Interval (PRI) End of frame (EOF) Type here to search M 50 us O /2 30 us 5: C PRI 1 100 us 77.5% PRI 2 ✓ → PRI 50 70 us + 20 us delay D Tools 12 us Fill & Sign 33°C Haze ^4) (ENG Comment 19:41 11-07-2022 0
