5. Obtain the Thévenin equivalent of this circuit to the left of terminals (a,b) and sketch the equivalent circuit. Use

Post by answerhappygod »

5 Obtain The Thevenin Equivalent Of This Circuit To The Left Of Terminals A B And Sketch The Equivalent Circuit Use 1
5 Obtain The Thevenin Equivalent Of This Circuit To The Left Of Terminals A B And Sketch The Equivalent Circuit Use 1 (19.36 KiB) Viewed 37 times

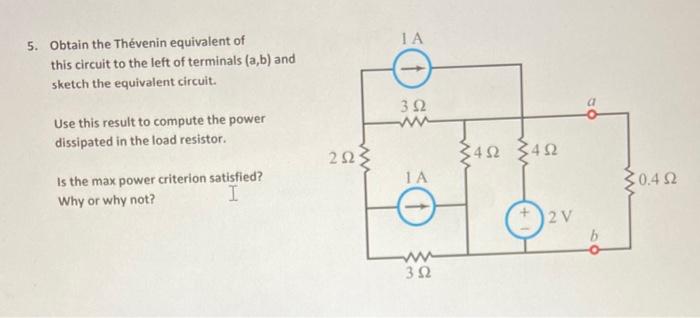

5. Obtain the Thévenin equivalent of this circuit to the left of terminals (a,b) and sketch the equivalent circuit. Use this result to compute the power dissipated in the load resistor. Is the max power criterion satisfied? I Why or why not? 252} IA 352 1 A www 352 Σ4Ω Σ4Ω 2 V b 50.4Ω
