(d) A pure resistor R=16 ohm is connected in series with a practical coil having an inducatnce and resistance. When the

[answerhappygod]

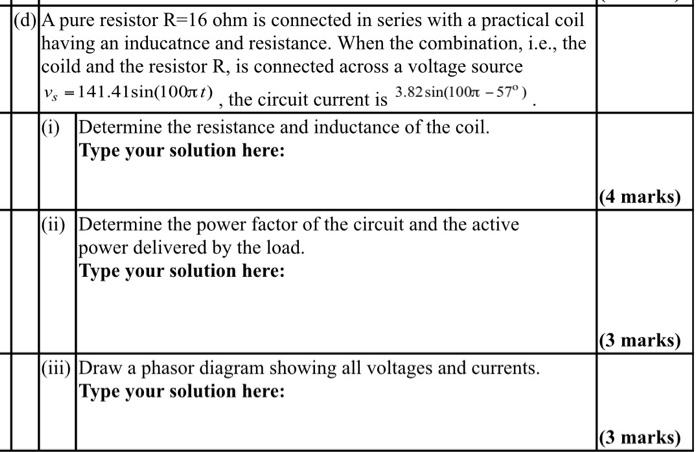

D A Pure Resistor R 16 Ohm Is Connected In Series With A Practical Coil Having An Inducatnce And Resistance When The 1 (53.25 KiB) Viewed 31 times

(d) A pure resistor R=16 ohm is connected in series with a practical coil having an inducatnce and resistance. When the combination, i.e., the coild and the resistor R, is connected across a voltage source v=141.41sin(100m), the circuit current is 3.82 sin(100m - 57°) (i) Determine the resistance and inductance of the coil. Type your solution here: (ii) Determine the power factor of the circuit and the active power delivered by the load. Type your solution here: (iii) Draw a phasor diagram showing all voltages and currents. Type your solution here: (4 marks) (3 marks) (3 marks)
