Q1. Considering the constant voltage drop (0.7V) model of the diode and vs(t)=5sinwot, for the given circuit: a) Draw th

Post by answerhappygod »

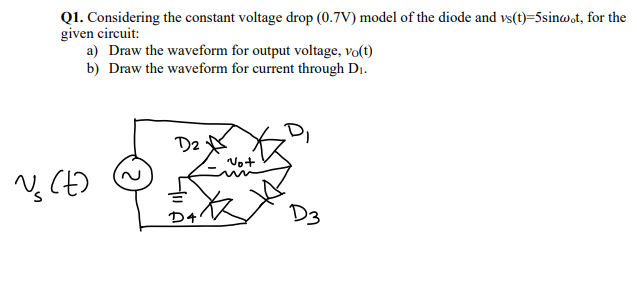

Q1 Considering The Constant Voltage Drop 0 7v Model Of The Diode And Vs T 5sinwot For The Given Circuit A Draw Th 1
Q1 Considering The Constant Voltage Drop 0 7v Model Of The Diode And Vs T 5sinwot For The Given Circuit A Draw Th 1 (32.6 KiB) Viewed 50 times
Q1. Considering the constant voltage drop (0.7V) model of the diode and vs(t)=5sinwot, for the given circuit: a) Draw the waveform for output voltage, vo(t) b) Draw the waveform for current through D₁. (6) D4 Not D3
