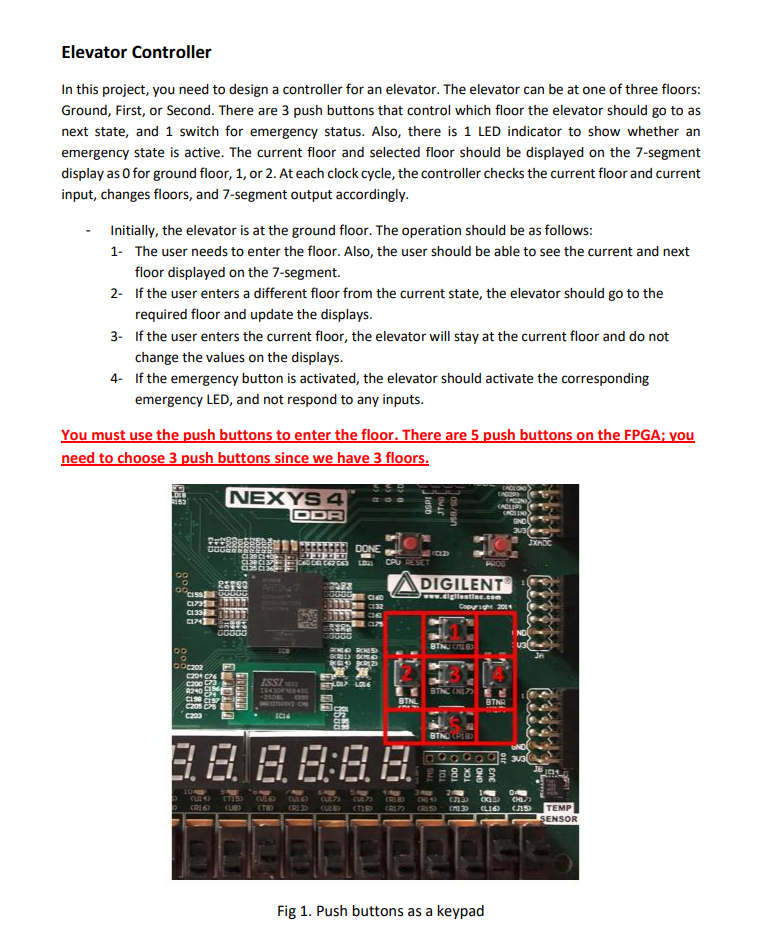

Elevator Controller In This Project You Need To Design A Controller For An Elevator The Elevator Can Be At One Of Thre 1 (531.4 KiB) Viewed 28 times

Elevator Controller In this project, you need to design a controller for an elevator. The elevator can be at one of three floors: Ground, First, or Second. There are 3 push buttons that control which floor the elevator should go to as next state, and 1 switch for emergency status. Also, there is 1 LED indicator to show whether an emergency state is active. The current floor and selected floor should be displayed on the 7-segment display as 0 for ground floor, 1, or 2. At each clock cycle, the controller checks the current floor and current input, changes floors, and 7-segment output accordingly. Initially, the elevator is at the ground floor. The operation should be as follows: 1- The user needs to enter the floor. Also, the user should be able to see the current and next floor displayed on the 7-segment. 2- If the user enters a different floor from the current state, the elevator should go to the required floor and update the displays. 3- If the user enters the current floor, the elevator will stay at the current floor and do not change the values on the displays. 4- If the emergency button is activated, the elevator should activate the corresponding emergency LED, and not respond to any inputs. You must use the push buttons to enter the floor. There are 5 push buttons on the FPGA; you need to choose 3 push buttons since we have 3 floors. 988 00 CISS C173 C133 C174 00 OOC202 C201 C26 C200 C23 8240 15 C139 C157 C205 CPS C203 NEXYS 4 DDR 000281 TOND EFSe FRAAAA ZOZEMAR popifie (4) (R16) (UB) on M BEBE 1060 061 062 063 LOGI 2083 REX47 ISSI 18430100400 -250BL (27000 CN 1016 DONE 2000 RONES SCRIL) SEMO 2 xx ET STY.DE? LOVE RE CPU RESET 3.8. 8. 8:8.8. BTNL STAG USB/SD (C12) BTNU CHILD DIGILENT www.digilentine.com Copyright 201 ĐÌNH N BINLCP199 (115) (o (UTC) (U17) (147) (RIB) CNG 43 (TB) (R130 (AD20) (PD2N) (ACLIP) CACI PROG (118) (817) (RIS) CH 3D Fig 1. Push buttons as a keypad BTNR GND 343 000000330 JXMOC val UND 2 115 O Che 005 (H17) (L16) (J15) TEMP SENSOR
