Consider the following circuit. If BJT is in the forward-active region, |Vbe|=0.7V, Va=infinity, beta=50. Find the value

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Consider the following circuit. If BJT is in the forward-active region, |Vbe|=0.7V, Va=infinity, beta=50. Find the value

Post by answerhappygod »

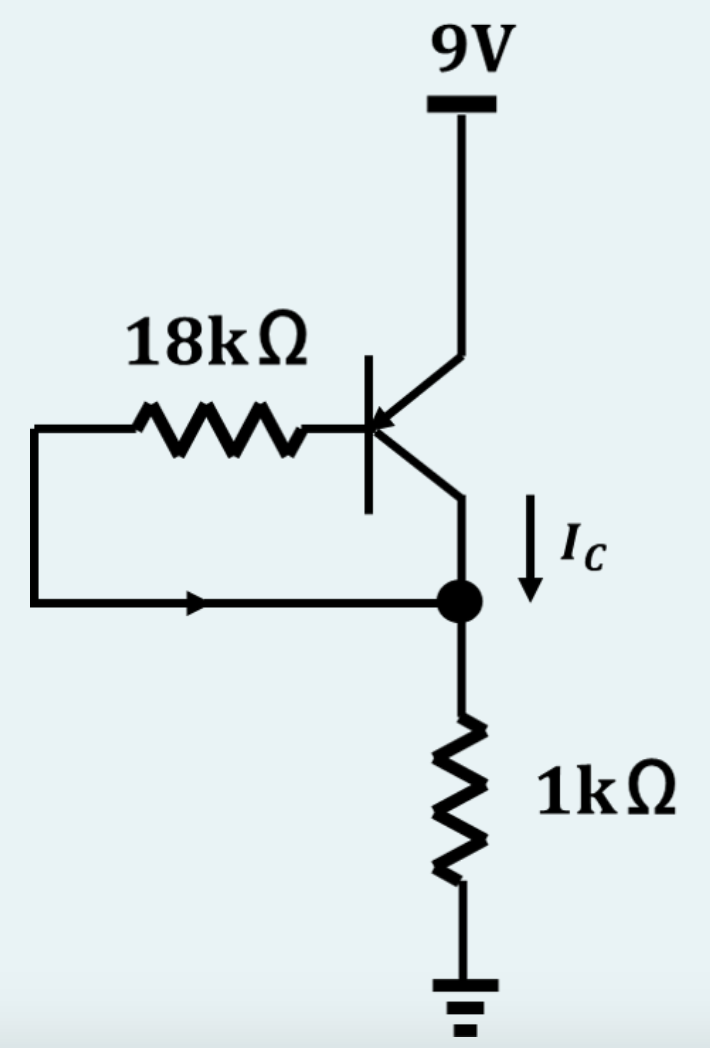

Consider the following circuit.
Consider The Following Circuit If Bjt Is In The Forward Active Region Vbe 0 7v Va Infinity Beta 50 Find The Value 1
Consider The Following Circuit If Bjt Is In The Forward Active Region Vbe 0 7v Va Infinity Beta 50 Find The Value 1 (55.86 KiB) Viewed 37 times
If BJT is in the forward-active region, |Vbe|=0.7V, Va=infinity,beta=50.
Find the value of Ic.
18kQ w 하 ~* Ic 1k2
